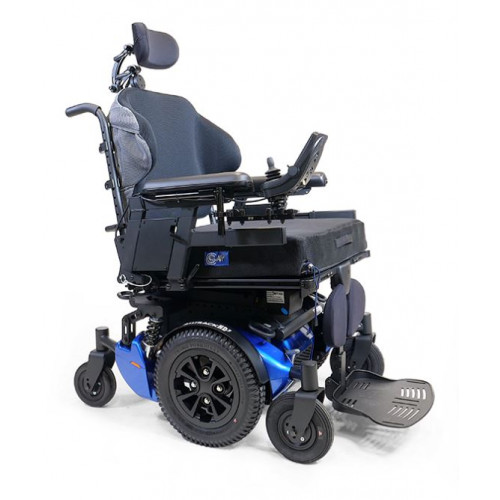

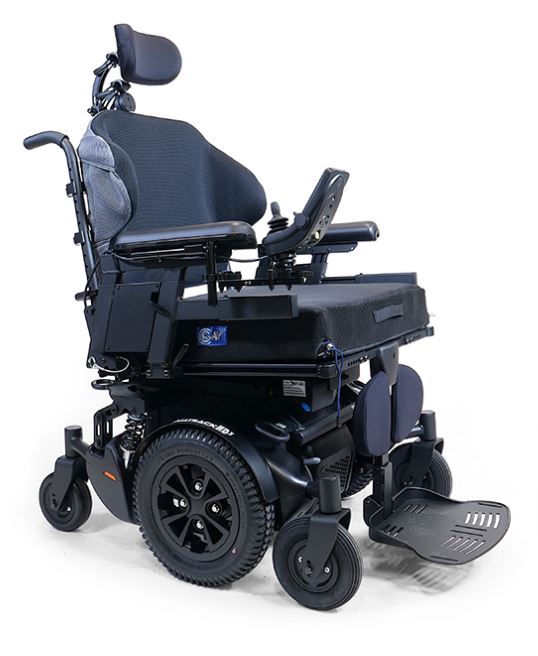

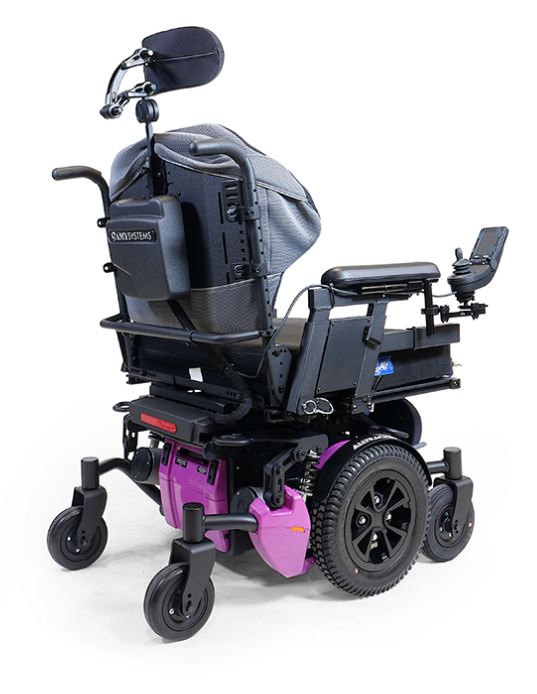

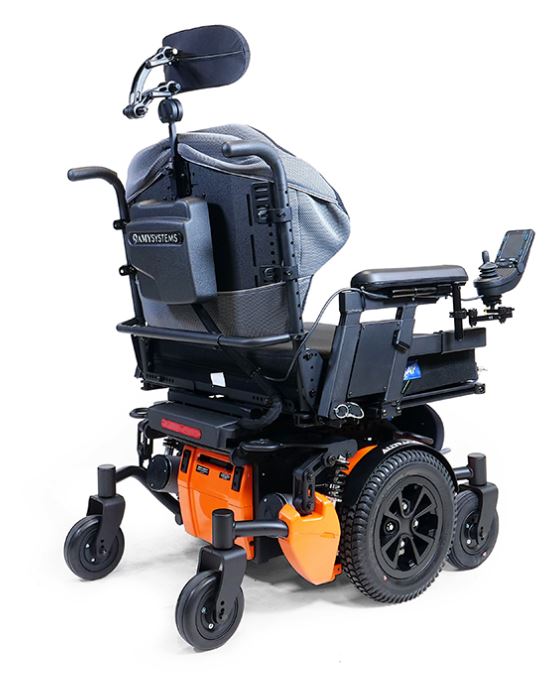

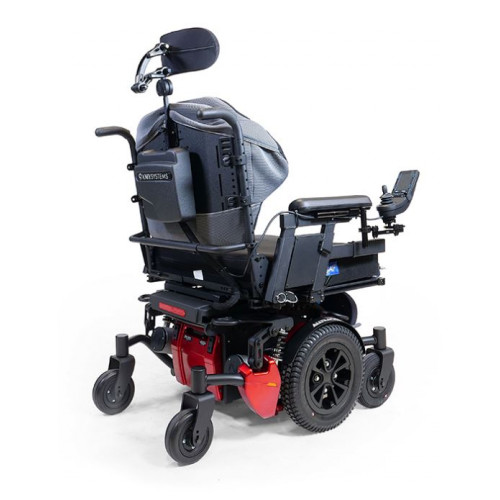

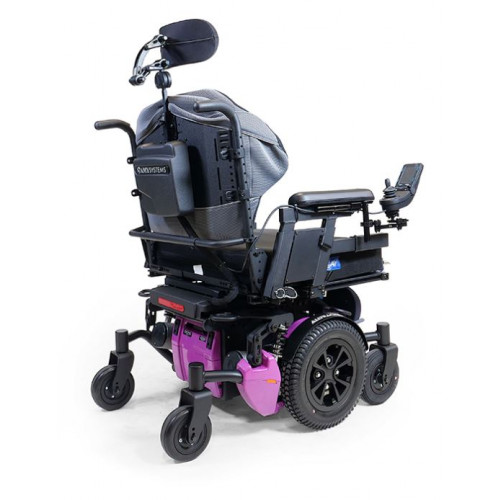

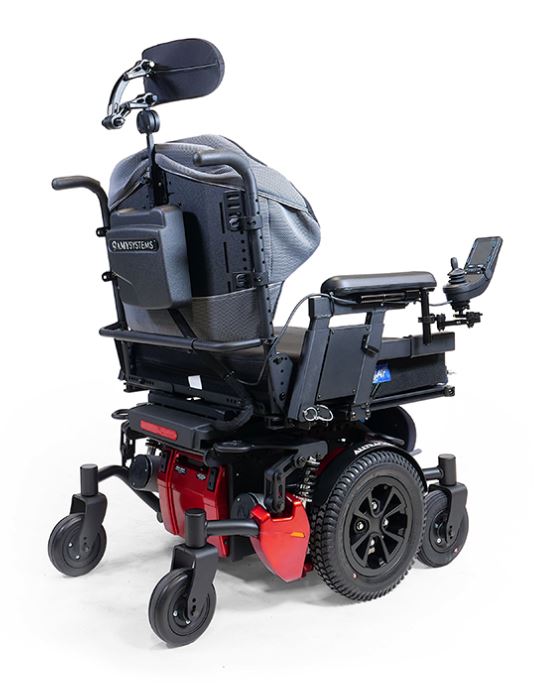

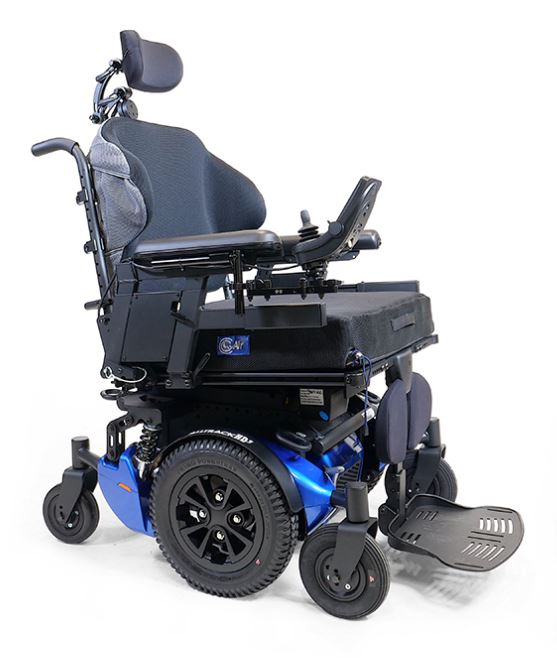

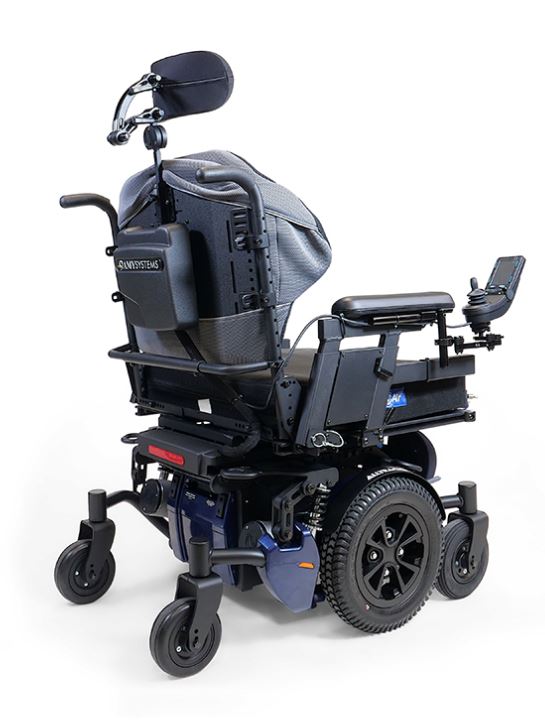

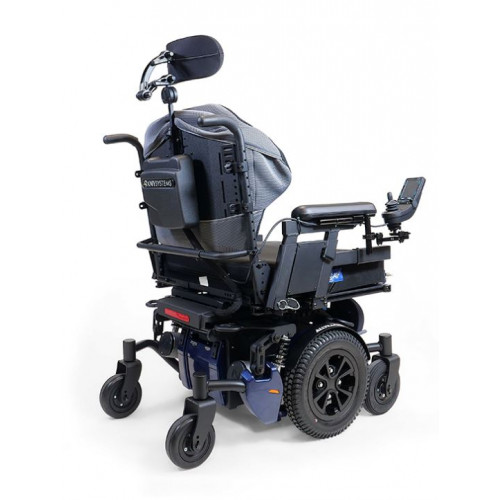

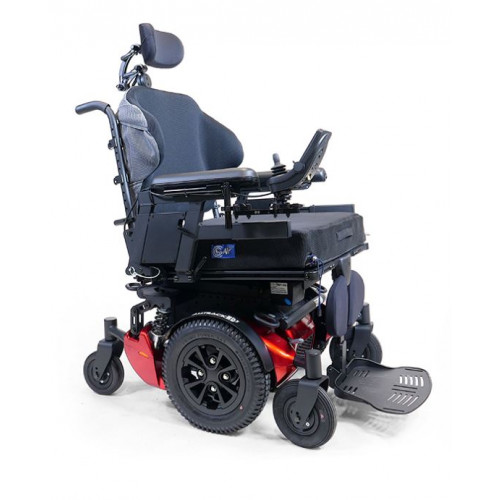

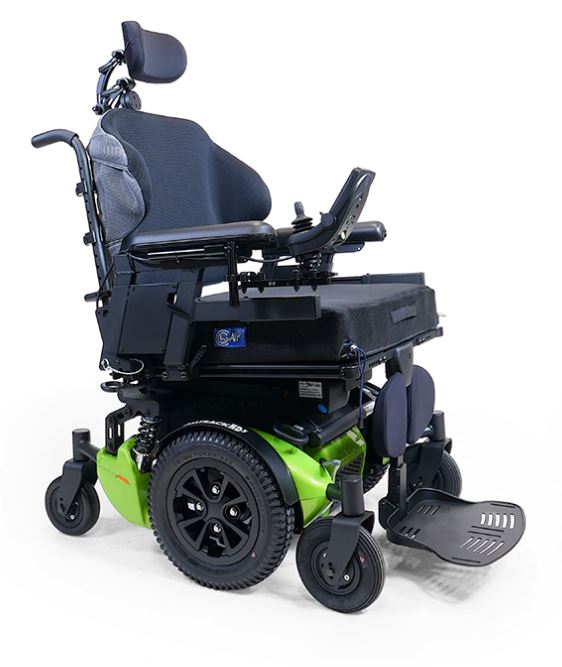

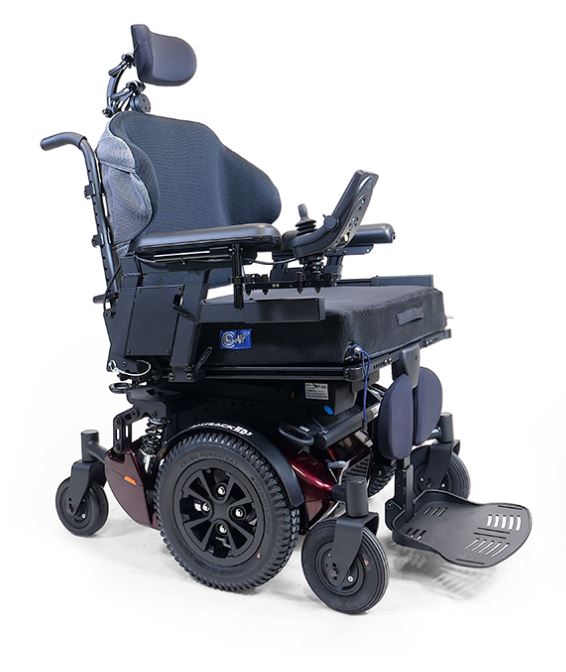

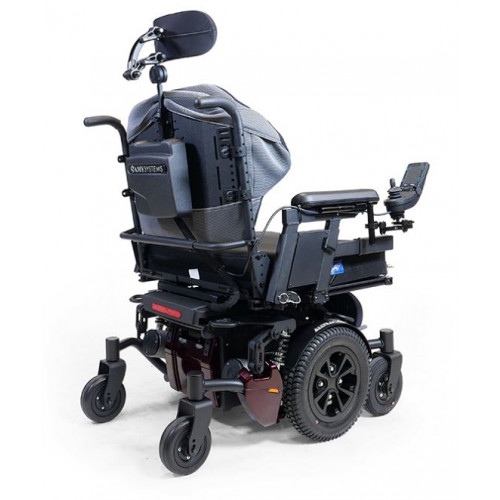

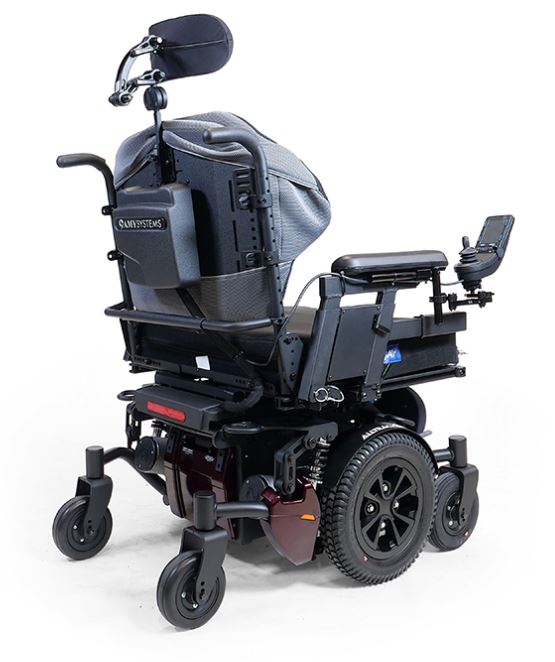

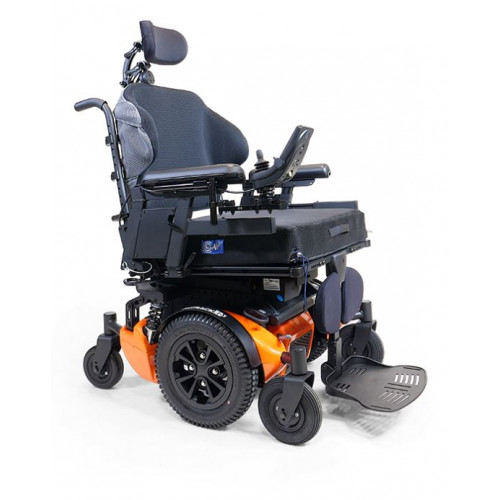

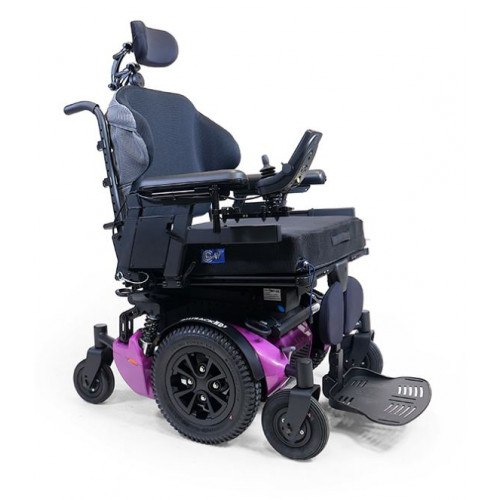

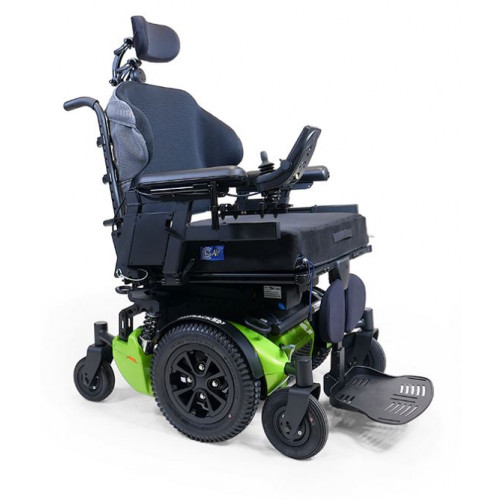

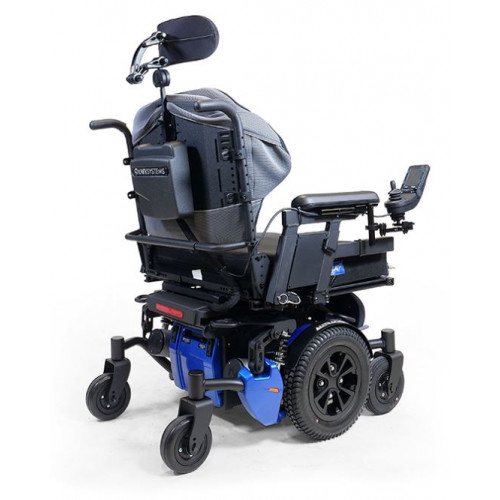

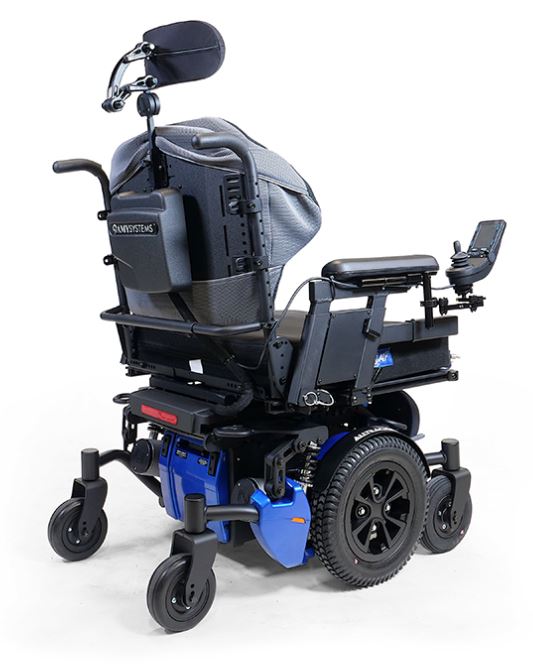

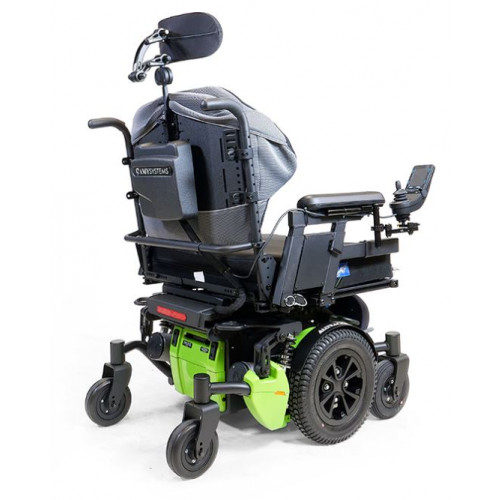

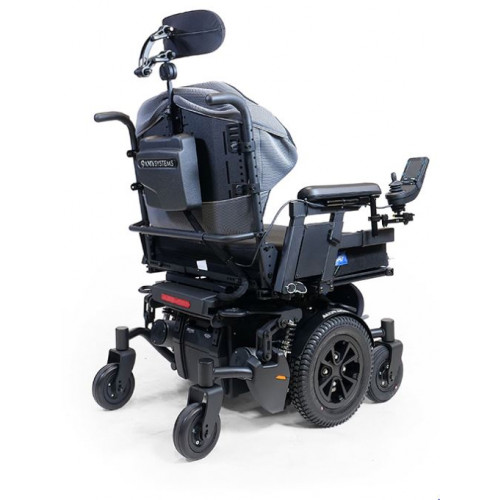

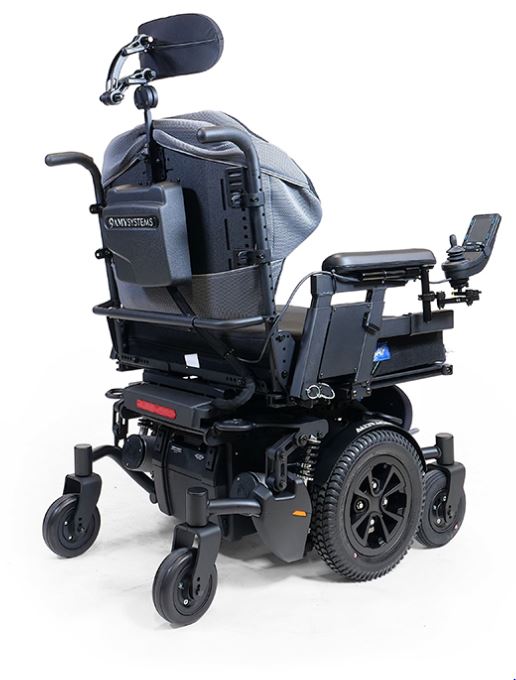

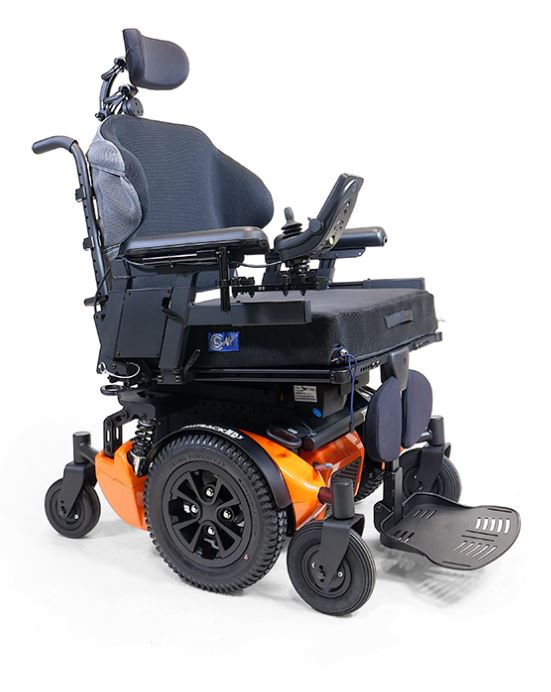

Alltrack HD Series Mid-Wheel Power Wheelchair

Amy Systems

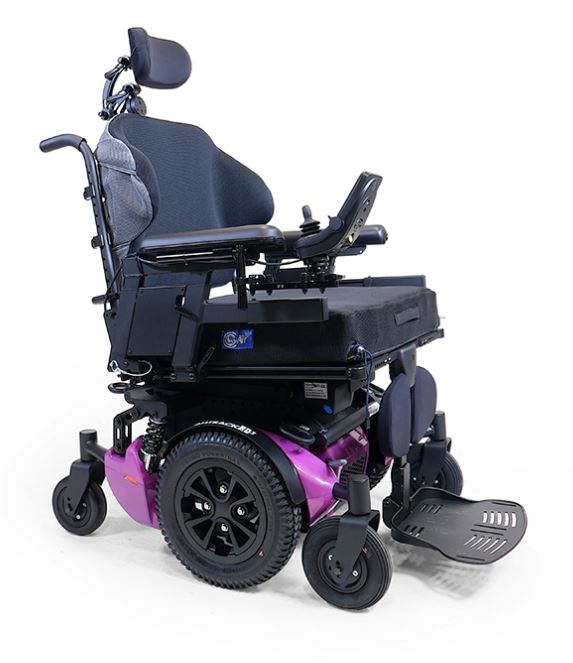

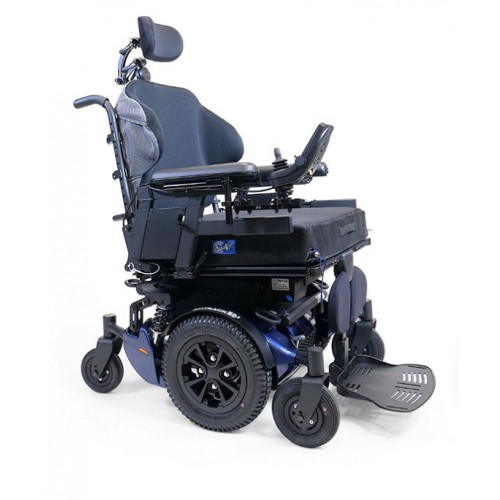

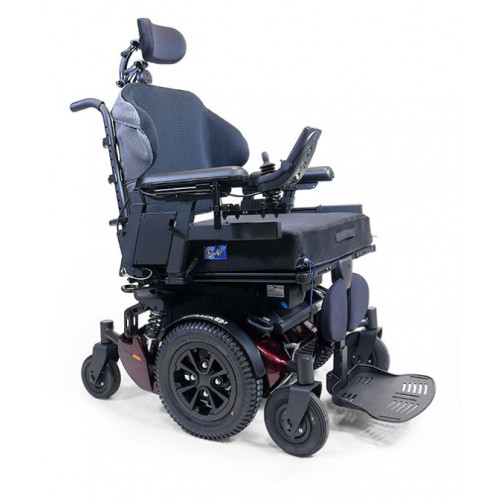

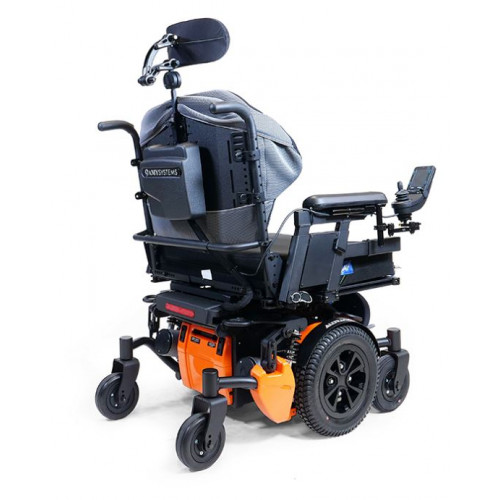

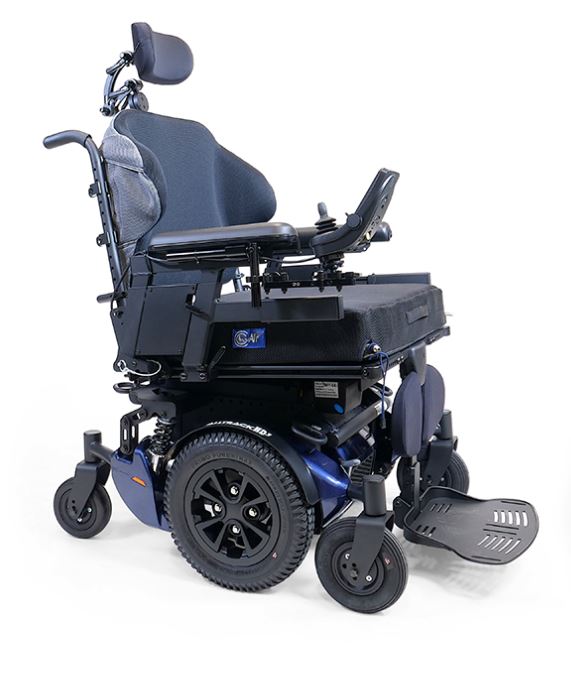

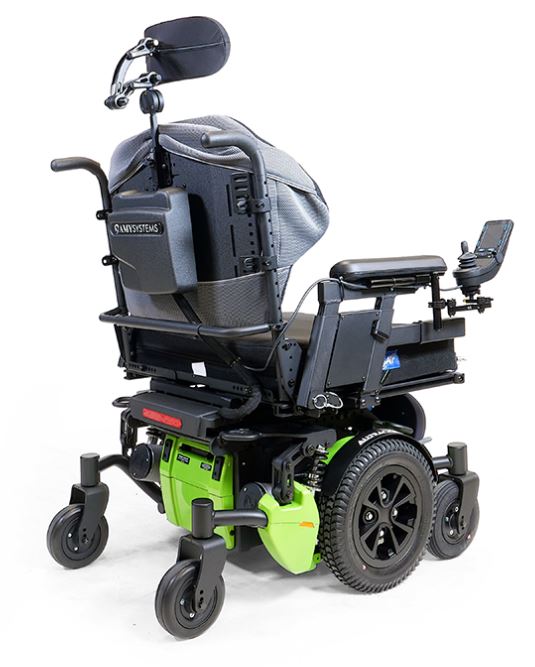

Pictures May Show Upgrades

Amy Systems (Model: ATHD3-3VHD)
What's Included
Free Batteries
Free Charger
5 Year Limited Warranty
AllTrack Series Product Brochure
AllTrack HD Order Form
AllTrack HD Owners Manual
Key Specs
Weight 455 lbs.
Weight Capacity 550 lbs.
Turning Radius 20.5"
Top Speed 5.4 mph
Drive Range 13.8 miles
Warranty 5 Year Limited


The Alltrack HD Series from Amy Systems is a versatile, very heavy-duty mid-wheel drive power wheelchair with a standard weight capacity of 550 lbs. This model is ideal for people sharing their time between indoor and outdoor activities as it allows for easy maneuvering over routine obstacles.

The Alltrack HD is no exception to any other Alltrack as its interactive 6-wheel suspension along with the seat suspension both enhance the stability, mobility and comfort for all users. It is the only bariatric (Heavy Duty) power wheelchair with a suspension of its kind and it comes with an extremely short turning radius of just 20.5” (520 mm).


Configuration Bariatric mid-wheel drive
HCPCS codes K0852, K0860, K0863
Suspension system GC3 (dual stage)
Ground clearance 3.5” (90 mm)
Base width 27.375” (695 mm)
Base length 35.125” (890 mm)
Turning radius 20.5” (520 mm)
Weight capacity 550 lbs (250 kg)
Motor options (Maximum speed) 4-pole German 5.4 MPH (9 kmh)
Transport option 4 point brackets (Standard)
Battery type Group 24
Battery charger 8A, off board
Electronics (PG Drives) VR2 (90 Amps), RNET (90 or 120 Amps)
Available with assistive driving package Yes (Smart-Track technology)
Available with specialty controls Yes (Switch-it, Stealth, ASL)
Fully modular rehab seat Adjustable from 20” to 28” (510 mm to 710 mm) wide (custom available)
Power seating options Yes (custom available)
Seat to floor height range (with power tilt or seat lift) 17.25” to 19.25” (440 mm to 490 mm)
Seat to floor height range (with combo power tilt and seat lift) 19.25” (490 mm)


  • 5 Year Limited Warranty
