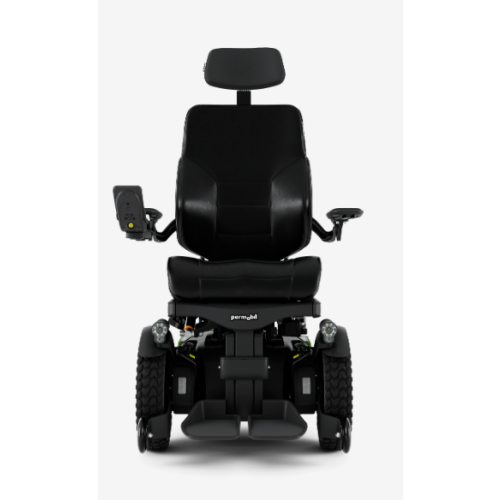

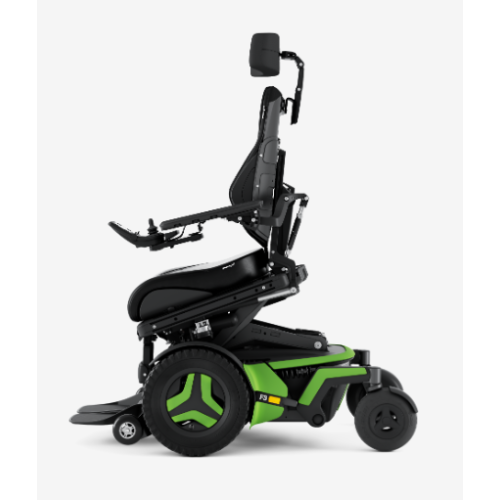

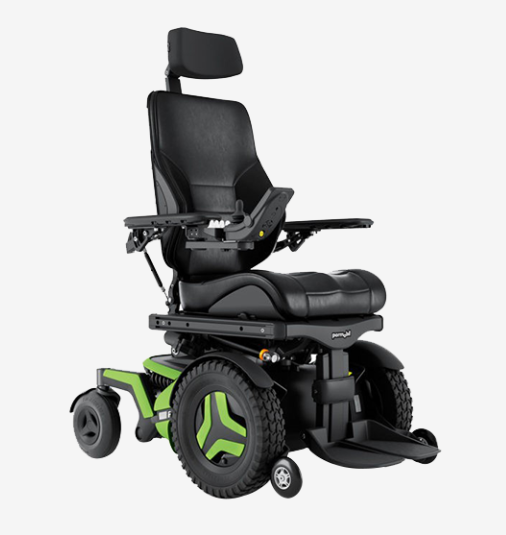

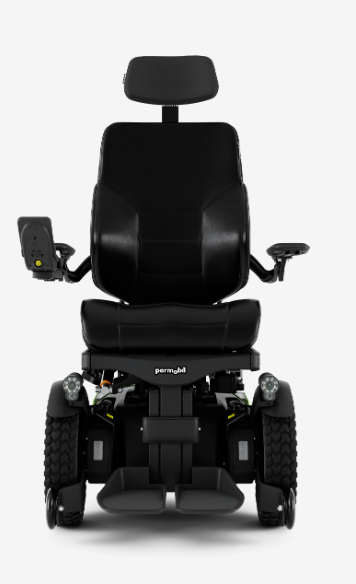

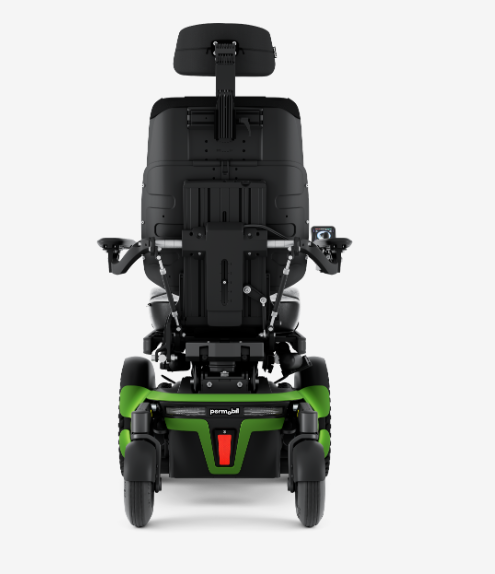

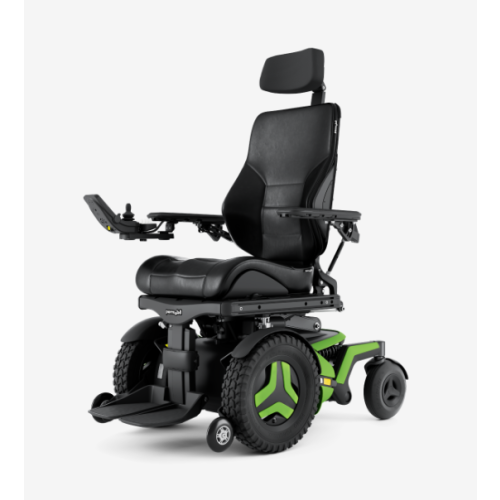

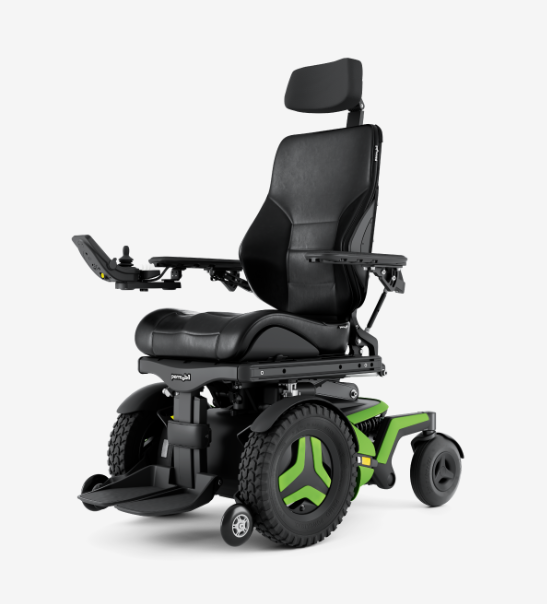

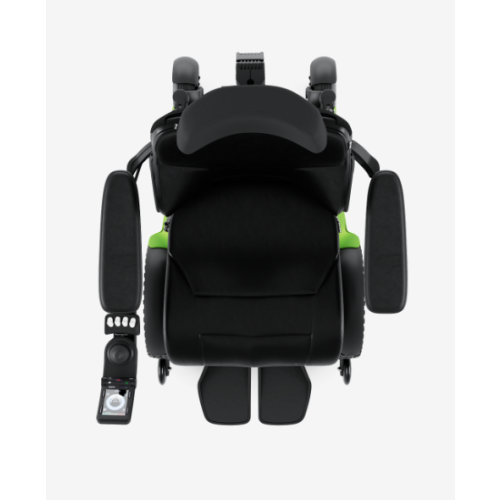

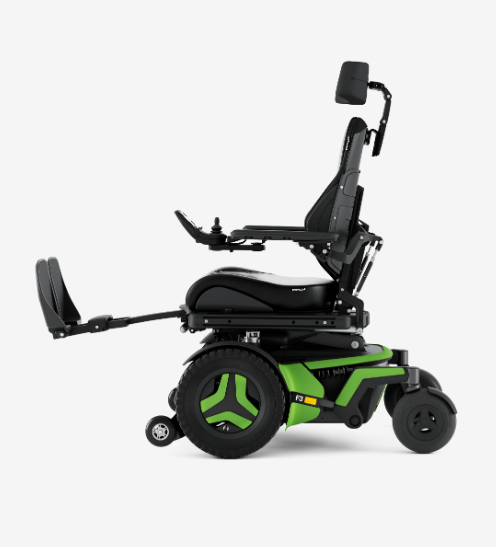

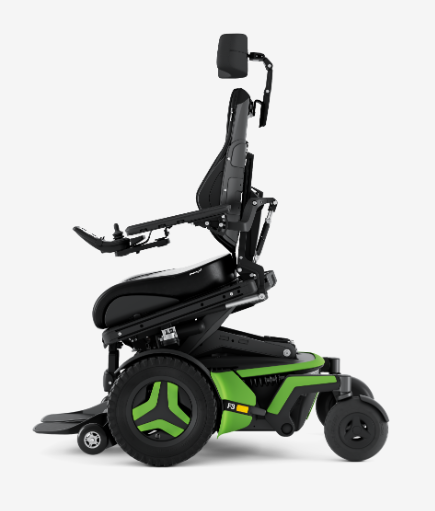

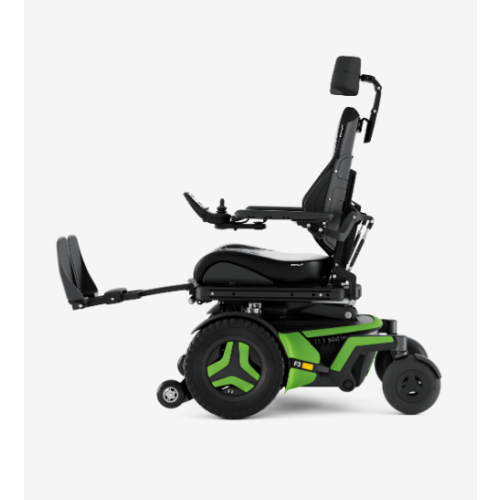

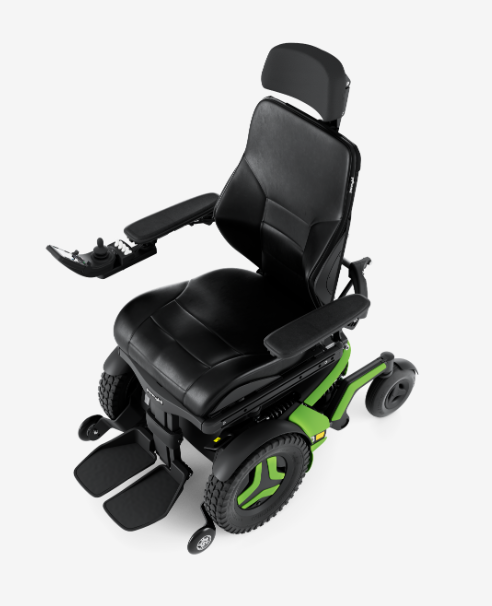

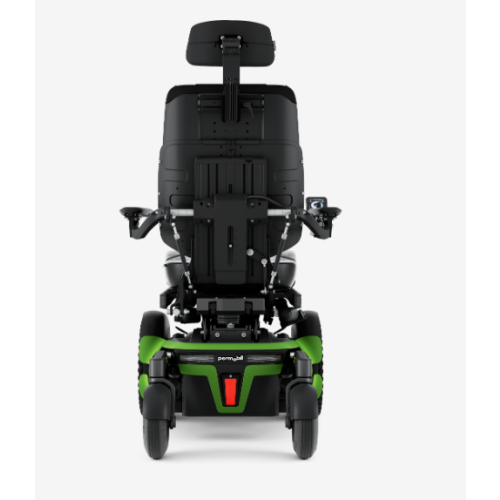

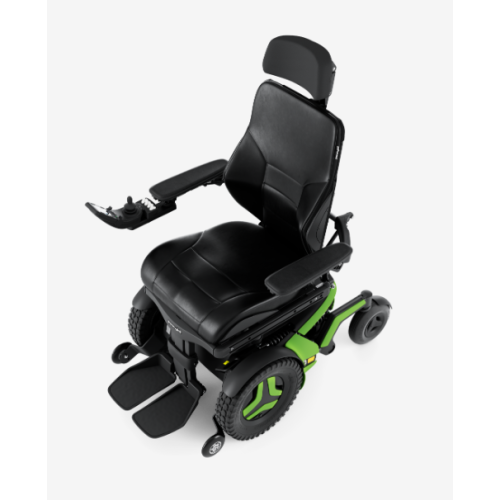

Permobil F3 Corpus Front Wheel Power Wheelchair

Permobil

Pictures May Show Upgrades

Permobil (Model: Permobil-F3)
What's Included
Free Batteries
Free Charger
2 Year Limited Warranty
Downloads
Permobil F3 Corpus Product Brochure.pdf
Permobil F3 Service Manual.pdf
Key Specs
Weight 405 lbs.
Weight Capacity 300 lbs.
Turning Radius 26.5"
Top Speed 6 mph
Drive Range 13 Miles
Warranty 2 Year Limited

Description

The F3 CORPUS offers the smallest footprint of this redesigned series of front-wheel drive power wheelchairs. Its size and agility let users move quickly in and out of tight spaces like busy city streets and crowded areas like malls…or even parties. The platform has a lower, repositioned center of gravity, which greatly improves stability while traversing inclines or declines. With its fully independent suspension, the F3 provides a comfortable ride and allows users to navigate the obstacles of life.

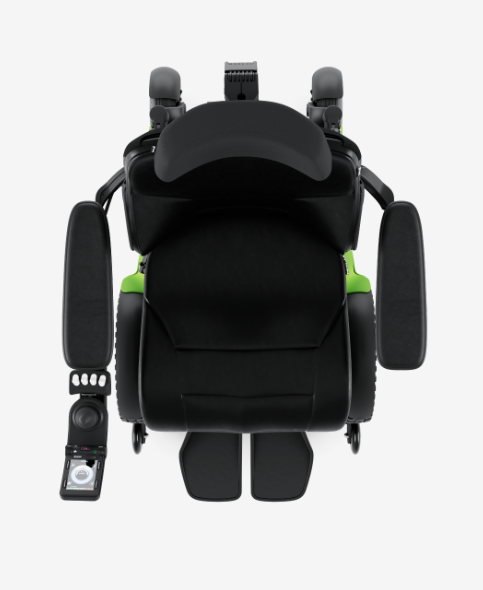

Compact Stability
Compact Stability

The power of the F3 comes in its compact, yet stable footprint. This allows you greater maneuverability in your environment with the option to remove anti-tippers.

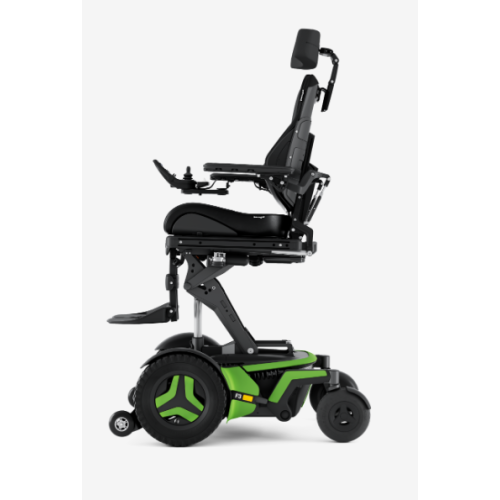

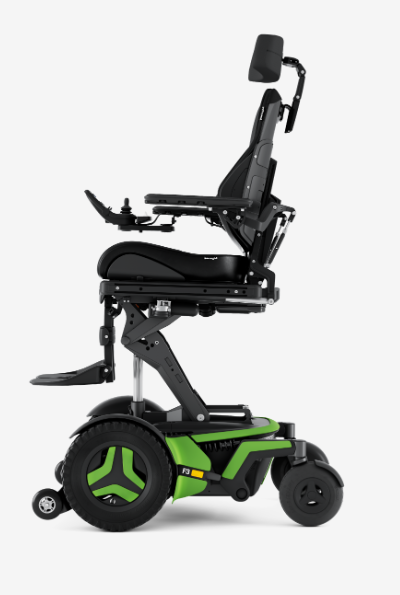

12″ Seat Elevator
12″ Seat Elevator

The new seat elevator utilizes 3 points of contact and shifts the seat rearward as it elevates to maintain an unimaginable level of stability even at full elevation. This allows individuals to get closer to tasks while providing faster and higher elevation.

Superior Suspension
Superior Suspension

With a fully independent suspension, the F3 delivers a more comfortable ride than ever before.

The Corpus® Seating System.

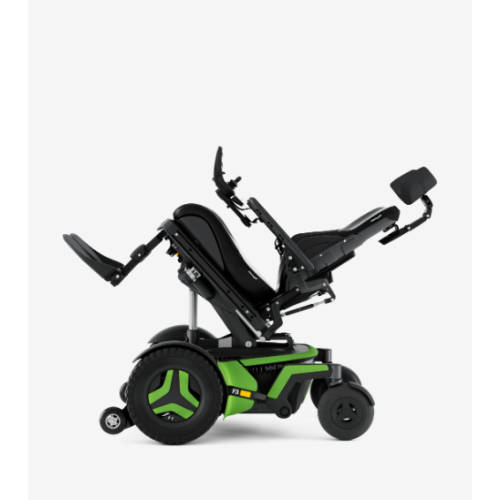

We retained all of the things that you have come to expect from the legendary Corpus seating system like the arc legrests, the open armrest design and the UniTrack System. Then, we took the Corpus seating system to the next level with advanced features such as: the 12” seat elevator and the A/P tilt function, which allows for optional 5º, 10°, 20° and 30° of anterior tilt, while maintaining 50° of posterior tilt. The A/P tilt helps our users with transfers, added reach, and allows them to get closer to a table or workspace.

All things Corpus.

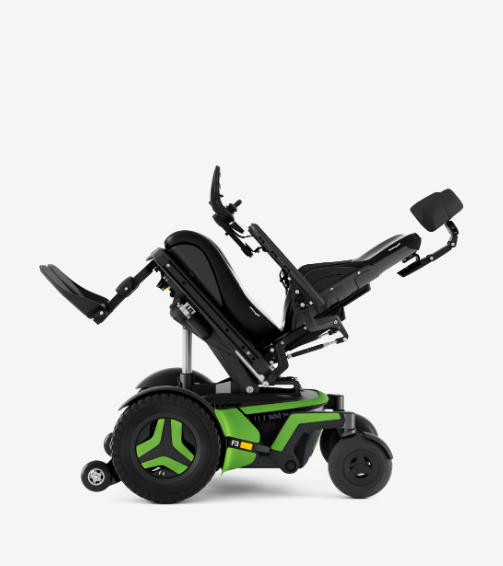

We’ve retained all the great features you’ve come to love in the Corpus® Seating System. With power features like 85º-170º elevating legrests, 180º power recline, and 50º of posterior tilt the F3 with Corpus is a perfect fit.

All Things Corpus

Stylish

With a variety of trim colors and an aggressive tread upgrade option, your new ride is sure to turn heads.

Specifications

Maximum User Weight 300 lbs
136 kg
Maximum Speed 6 mph
10 km/h
Driving Range (1) 13 miles
21 km
Base Width 24"
610 mm
Base Length 36" (40" w/ anti-tippers)
915/1016 mm
Minimum Turning Radius 26.5"
673 mm
Ground Clearance 3"
75 mm
Drive Electronics R-net 120A
Battery Type Group 24 Gel, Group 34 Gel
Optional Seat Elevator 12"
300 mm
Seat to Floor Height 17.5", 18.5", 19.5"
445, 470, 495 mm
Power Tilt Options 0° - 50° Posterior
5º, 10°, 20° & 30° Anterior
Recline Options 85º-120° (manual), 85º-180° (power)
Legrest Elevation 85° - 170°
Armrest Pad Lengths 10", 13", 16" & 18"
Seat Widths 17" - 23" (by 2" increments)
420 - 570 mm
Seat Depths 14" - 22" (by 1" increments)
370 - 570 mm
Backrest Heights 20", 23" - 28" (by 1" incr.)
505, 580-710 mm

1 This represents the theoretical driving range when testing the wheelchair according to RESNA WC-2, Section 4. This test is performed under ideal conditions and actual range will vary depending on battery and driving conditions. These specifications are dependent on the configuration of the wheelchair. For further information not mentioned in this sheet, please refer to the user manual which can be downloaded from the Permobil web site, or contact your local Permobil office. *The range may be reduced if the wheelchair is used frequently on slopes, rough ground or to climb curbs often.
