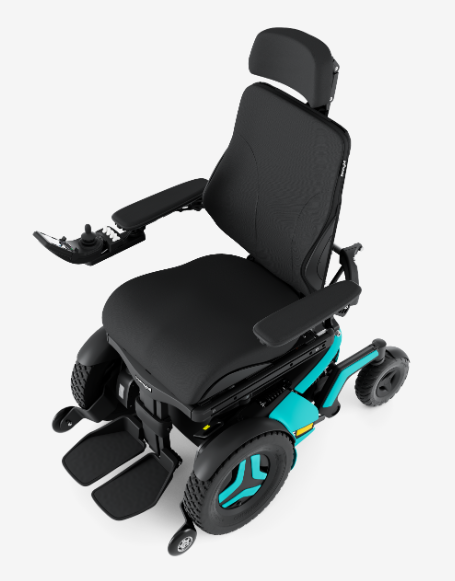

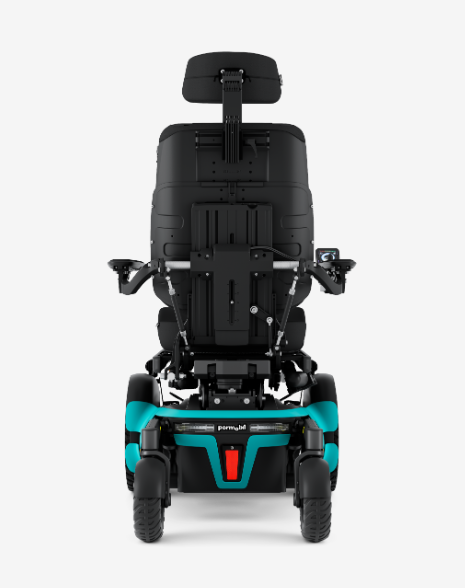

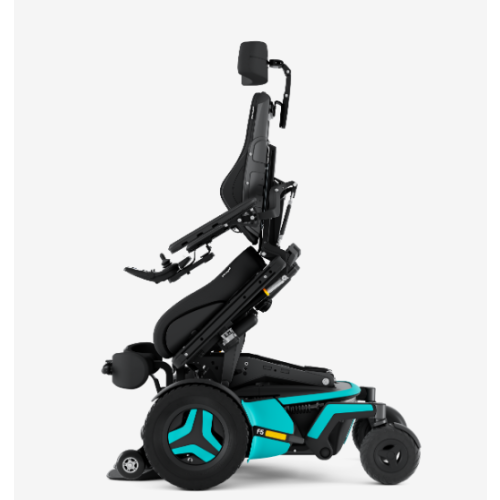

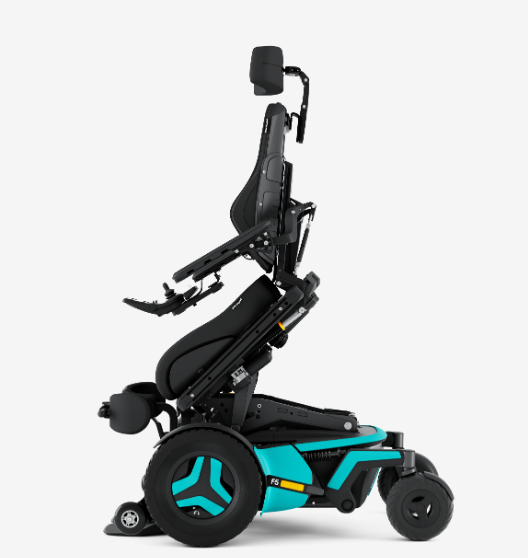

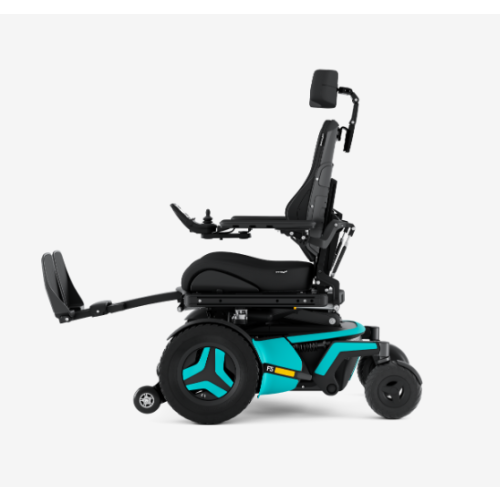

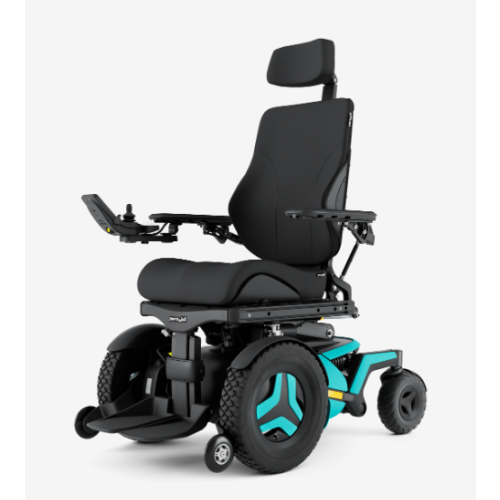

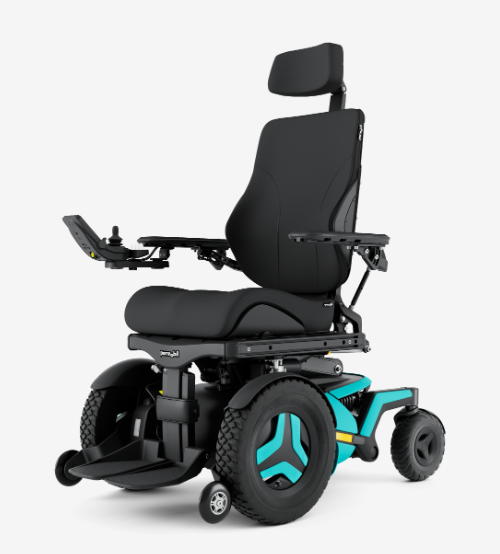

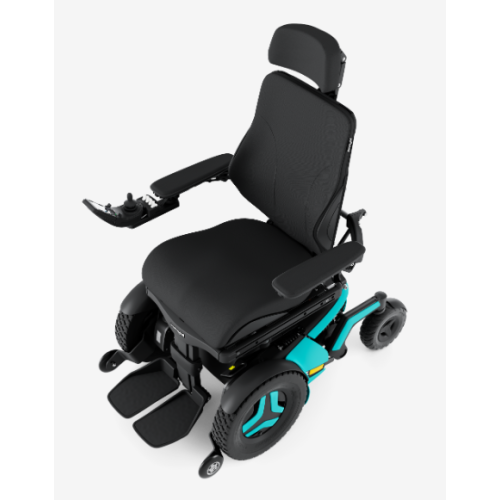

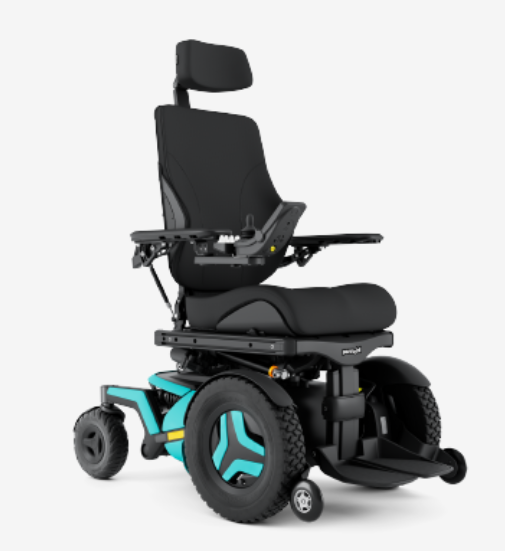

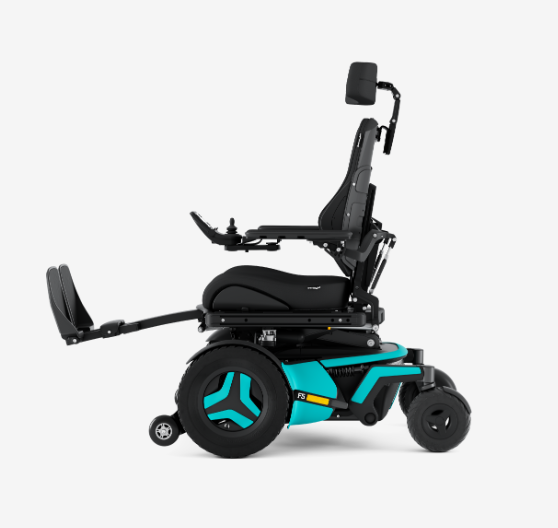

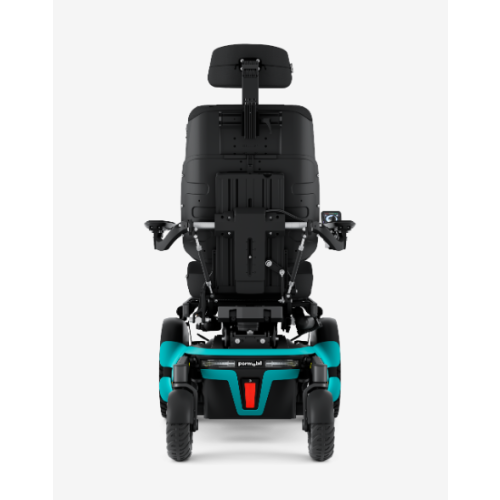

Permobil F5 Corpus Front Wheel Power Wheelchair

Permobil

Pictures May Show Upgrades

Permobil (Model: F5-Corpus)
What's Included
Free Batteries
Free Charger
2 Year Limited Warranty
Downloads
F5 Corpus Product Brochure
F5 Corpus Owners Manual
F5 Corpus Order Form
Key Specs
Weight 432.1 lbs.
Weight Capacity 300 lbs.
Turning Radius 30"
Top Speed 7.5 mph
Drive Range 16 miles
Warranty 2 Year Limited

Description

The F5 Corpus features an array of advancements to help increase the stability of the chair for a smooth, comfortable ride, including: a smaller footprint with an improved center of gravity, a more rigid chassis, fully independent oil-dampened suspension and a lower seat-to-floor height. The new three-point tilt and elevator system provides solid stability and performance. The standard 7.5 mph motor package with improved torque allows users to easily navigate obstacles at any speed. Options include: black tires with more aggressive tread patterns, chrome accents and two additional color options.

Fully Independent Suspension

Fully Independent Suspension

A true fully independent suspension allows the F5 Corpus to absorb everyday terrain and obstacles with minimal translation to the end user. Our updated shocks are fully adjustable with an included 4mm tool all while the user remains in the chair. The ride quality is like nothing you’ve experienced in a power wheelchair before.

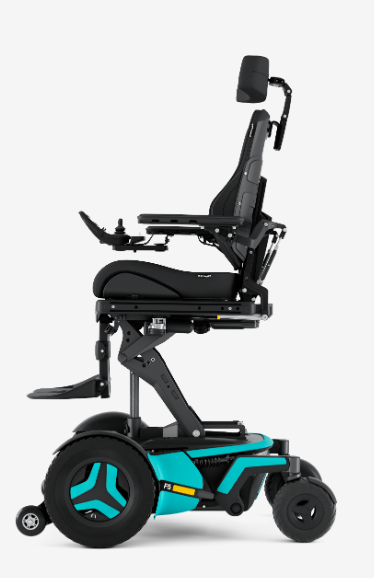

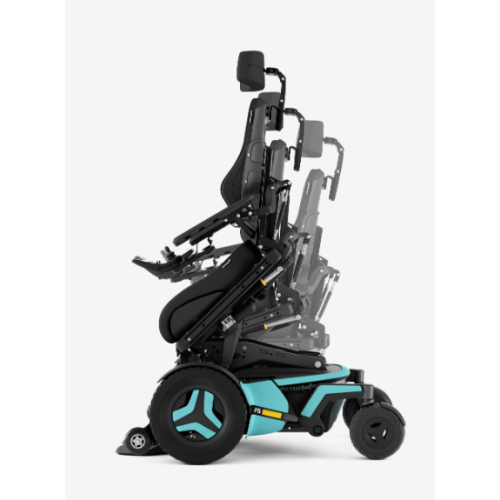

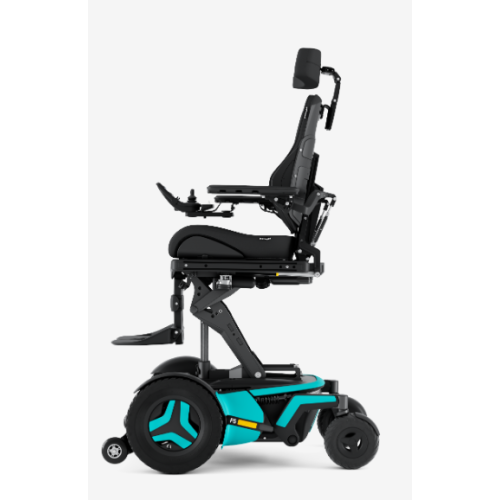

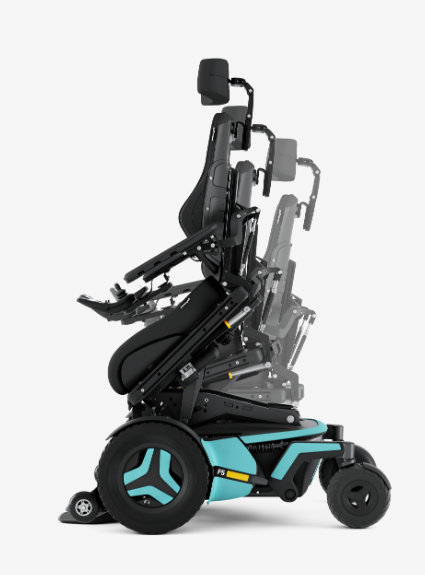

14″ Seat Elevator

14″ Seat Elevator

The new seat elevator utilizes 3 points of contact and shifts the seat rearward as it elevates to maintain an unimaginable level of stability even at full elevation. This allows individuals to get closer to tasks while providing almost twice as much elevation twice as fast.

Lower Seat-to-Floor Height

Lower Seat-to-Floor Height

The lower Seat-to-Floor height on the new F-Series means an improved accessibility to your world.

The Corpus® Seating System.

We retained all of the things that you have come to expect from the legendary Corpus seating system like the arc legrests, the open armrest design and the UniTrack System. Then, we took the Corpus seating system to the next level with advanced features such as: the 14” seat elevator and the A/P tilt function, which allows for optional 10°, 20° and 45° of anterior tilt, while maintaining 50° of posterior tilt. The A/P tilt helps our users with transfers, added reach, and allows them to get closer to a table or workspace.

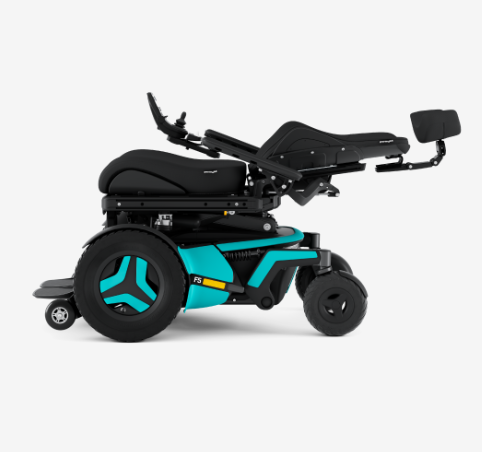

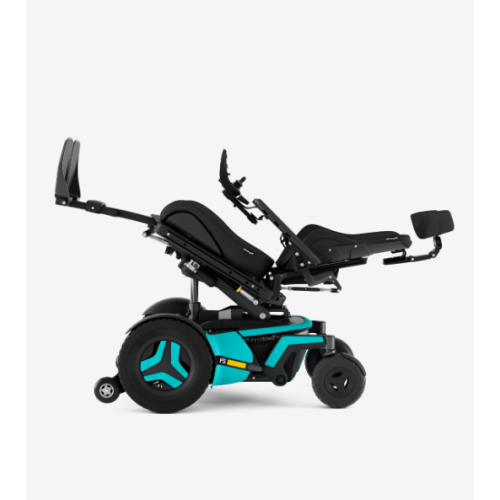

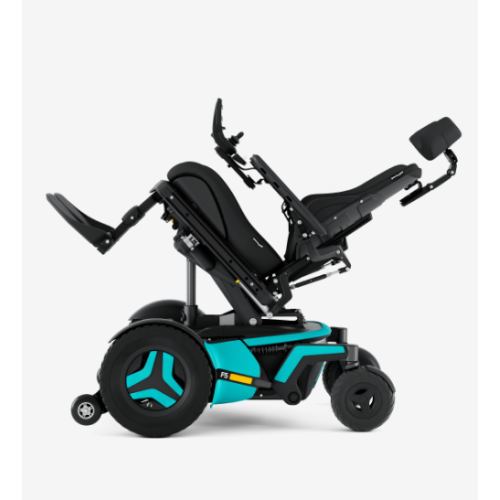

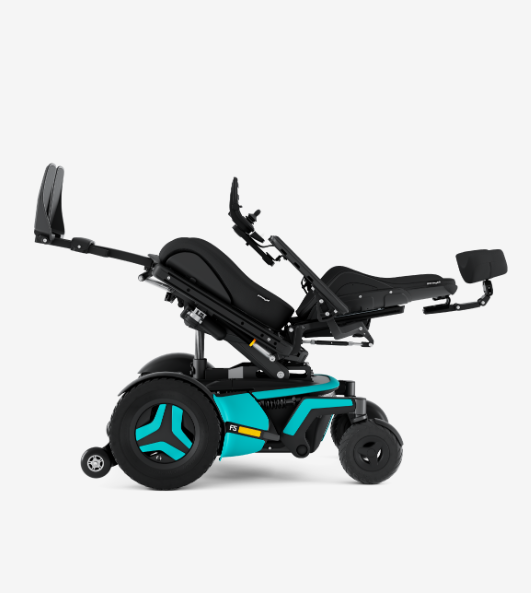

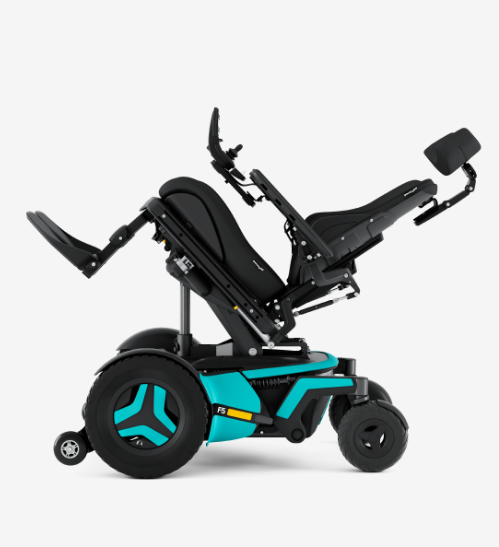

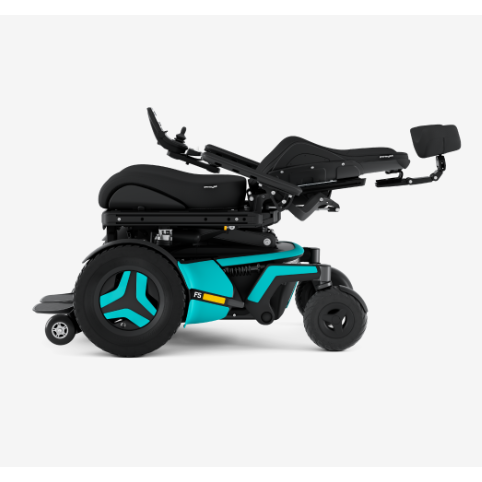

Enhanced tilt functionality.

With optional 10º, 20º, and 45º anterior tilt, while maintaining 50º posterior tilt.

Specifications

  • Seat height 450 mm
  • Seat height with electric seat lift 450–800 mm
  • Max. user weight 136 kg
  • Seat width 420–570 mm (by 50 mm)
  • Seat depth 370–570 mm (by 25 mm)
  • Backrest width 360/410/460/510 mm
  • Backrest height 470, 545–670 mm (by 25 mm)
  • Distance between armrests 380–480/480–580 mm
  • Backrest angle – adjustable 120°(manual),150° & 180°(power)
  • Armrest height 185–320 mm
  • Legrest angle – adjustable 90°–180°
  • Range 25–35 km*
  • Max. speed 12 km/h
  • Turning in corridor 1140 mm
  • Obstacle capability 70–100 mm
  • Electric tilt adjustment (posterior) 50°
  • Electric tilt adjustment (anterior)** 10°/20°/45°
  • Crash tested

Warranty

  • 2 Year Limited Warranty
