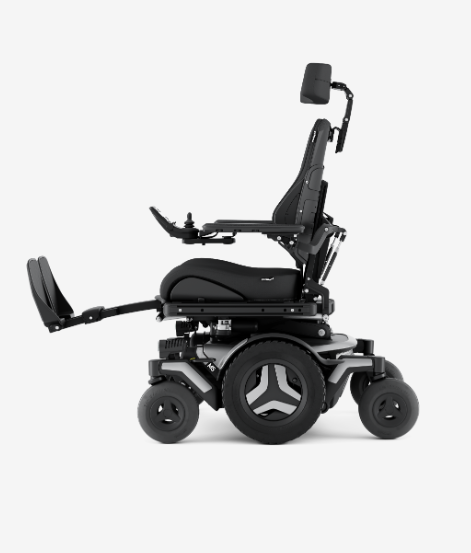

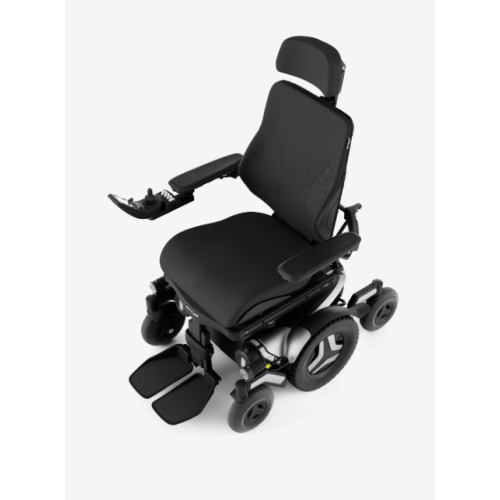

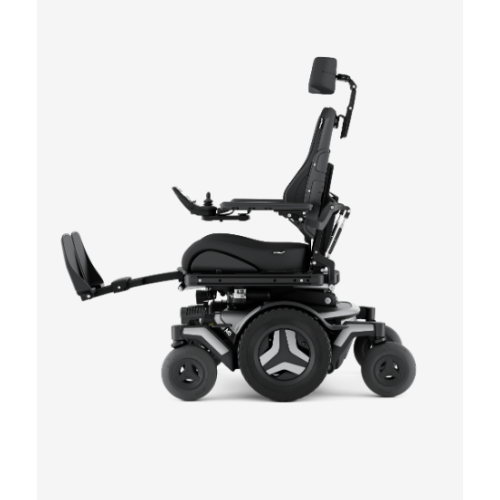

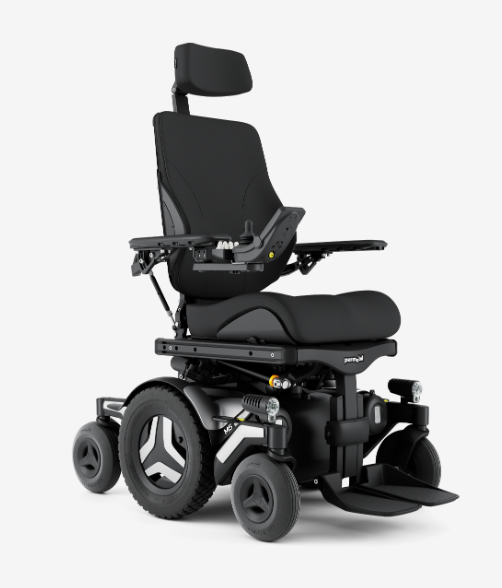

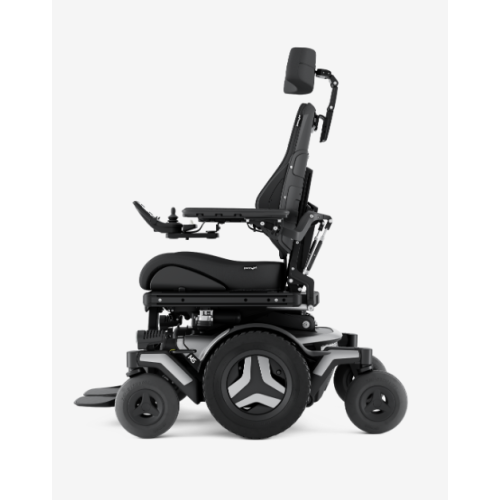

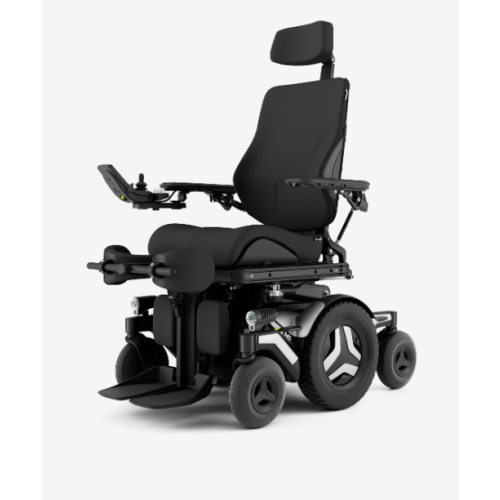

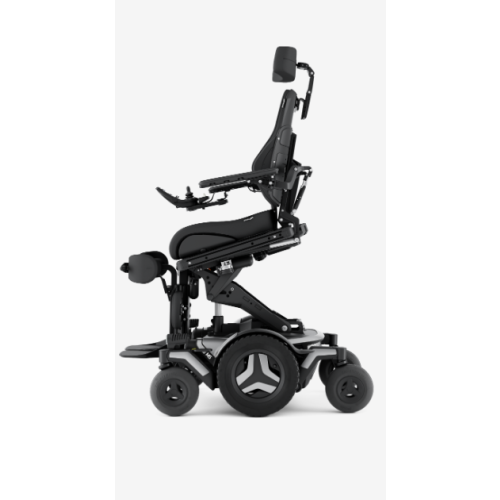

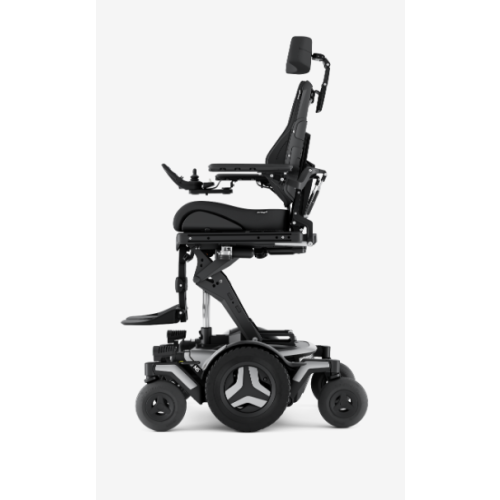

Permobil M5 Corpus Mid Wheel Power Wheelchair

Permobil

Pictures May Show Upgrades

Permobil (Model: M5-Corpus)
What's Included
Free Batteries
Free Charger
2 Year Limited Warranty
Downloads
M5 Corpus Order Form
M5 Corpus Product Brochure
M5 Corpus Owners Manual
Key Specs
Weight 430 lbs.
Weight Capacity 300 lbs.
Turning Radius 44"
Top Speed 7.8 mph
Drive Range 20 miles
Warranty 2 Year Limited

Description

Want to navigate the downtown scene or explore the road less traveled? Wherever you’re looking to go, the Permobil M5 is built for your lifestyle. By fusing sleek design, unparalleled power and the FlexLink Pro dynamic suspension, each M5 delivers an outstanding level of performance and ride comfort. Perfect for every adventure!

FLEXLINK PRO | Feel the Difference
FLEXLINK PRO | Feel the Difference

Experience unsurpassed stability and comfort from our unique suspension geometry and linear spring design that is paired with our patent pending FlexLink™ Suspension for advanced vibration reduction. For even more comfort the M5 Corpus debuts the FlexLink Pro for first-in-class independent drive wheel suspension.

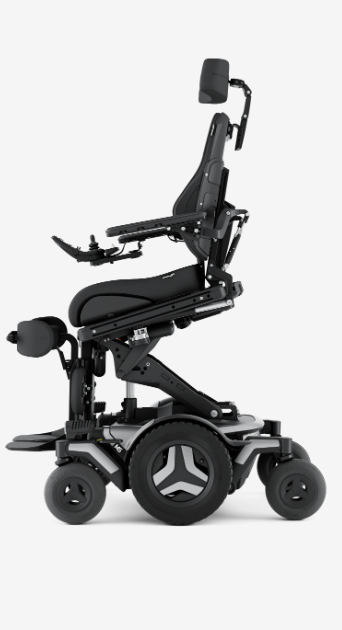

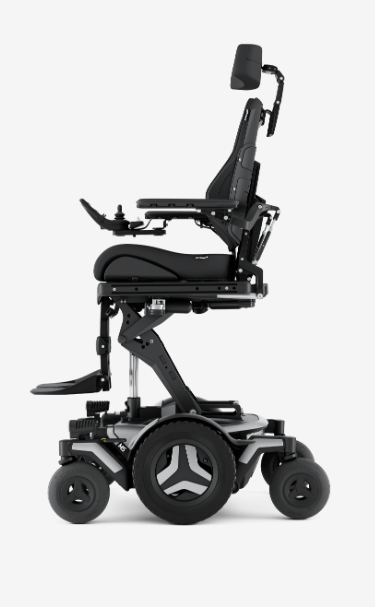

3.2mph @ 14″ of Seat Elevation w/Full Suspension
3.2mph @ 14″ of Seat Elevation w/Full Suspension

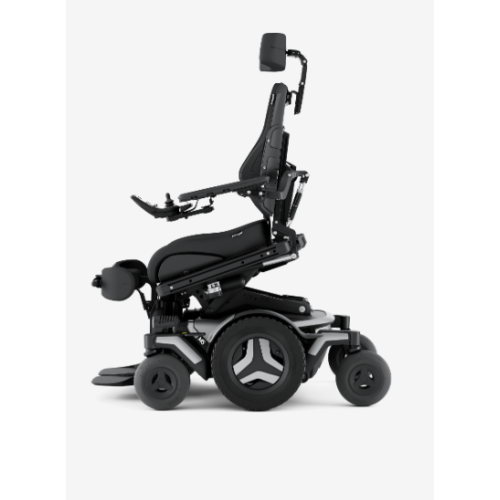

In the tradition of high-performance motors and gearboxes, the M5 takes control with a 7.5 mph motor package and superior torque. Coupled with a 14″ seat elevator that maintains full suspension at any seating position and drive speed, piloting the M5 Corpus will help you take adventure to a new level.

Blaze Your Own Trails
Blaze Your Own Trails

The rubber meets the road with our 8″ aggressive or standard caster options. The M5’s adjustment-free flutter damping device enables an intuitive driving experience even with a wide variety of drive controls. Finally, mid-wheel drive performance that lets you pivot like a pro.

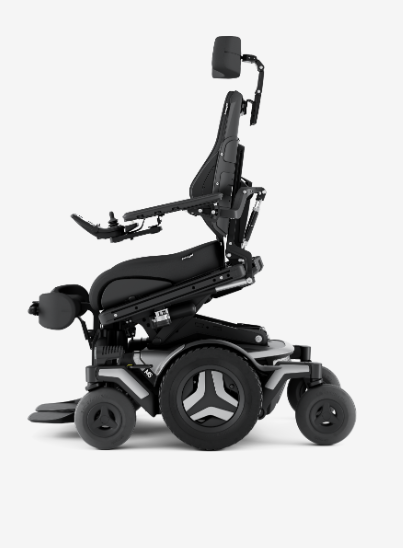

ACTIVEREACH | Reach for More

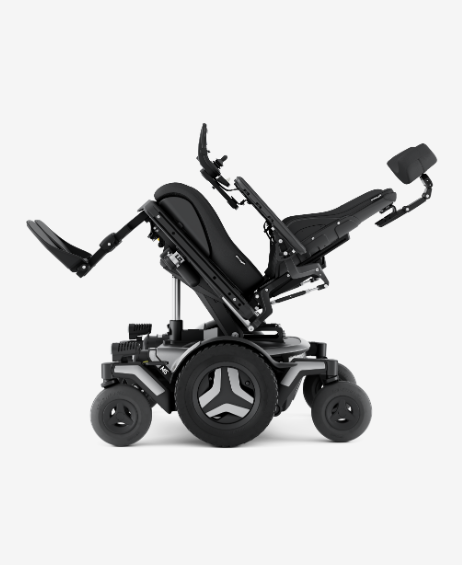

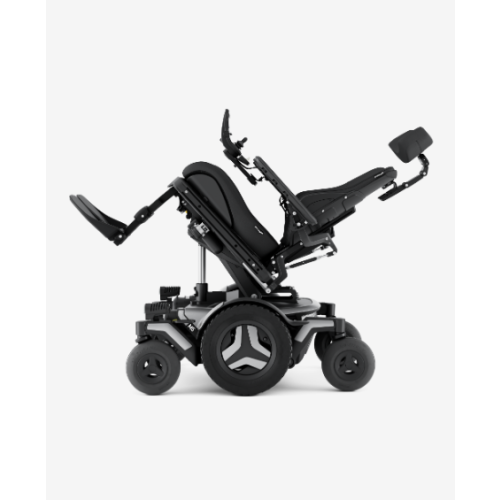

Your world isn’t one dimensional. Your seat elevator shouldn’t be either. ActiveReach™ technology is the ultimate advantage in accessing your environment. By combining 14” of seat elevation and Corpus seating functions, Permobil’s ActiveReach™ technology enables you with up to 20º of forward tilt. This can be used for reaching beyond obstructions, into high cabinets, or even assist in transfers. Truly putting your world within reach.

Specifications

  • Seat height 450 mm
  • Seat height with electric seat lift 450–800 mm
  • Max. user weight 150 kg
  • Seat width 420–570 mm (by 50 mm)
  • Seat depth 370–570 mm (by 25 mm)
  • Backrest width 360/410/460/510 mm
  • Backrest height 470, 545–670 mm (by 25 mm)
  • Distance between armrests 380–480/480–580 mm

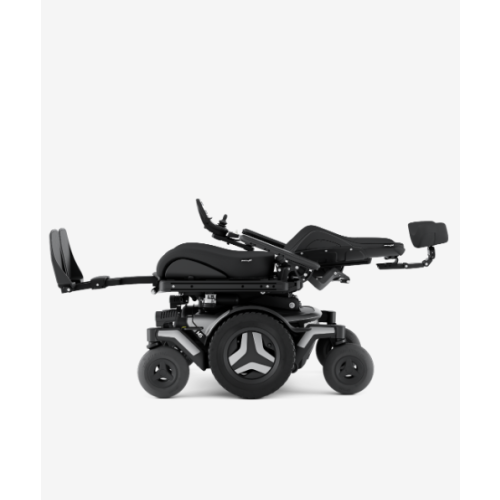

  • Backrest angle – adjustable 120°(manual),150° & 180°(power)
  • Armrest height 185–320 mm
  • Legrest angle – adjustable 90°–180°
  • Range 30 km*
  • Max. speed 12 km/h
  • Turning in corridor 1120 mm
  • Obstacle capability 75-90 mm

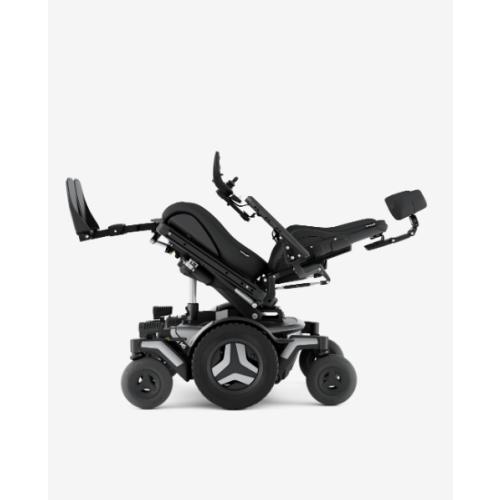

  • Electric tilt adjustment (posterior) 50°
  • Electric tilt adjustment (anterior)** 10°/20°
  • Crash tested
