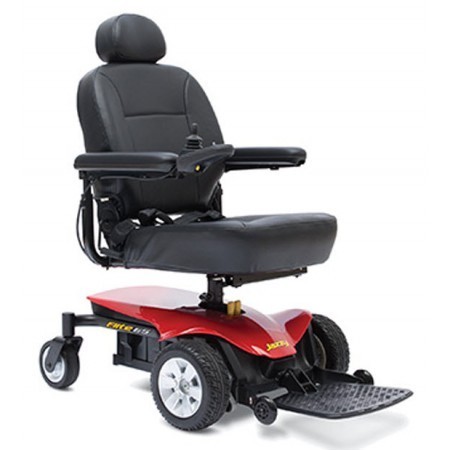

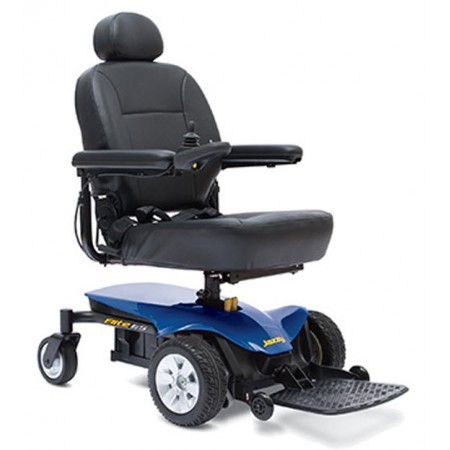

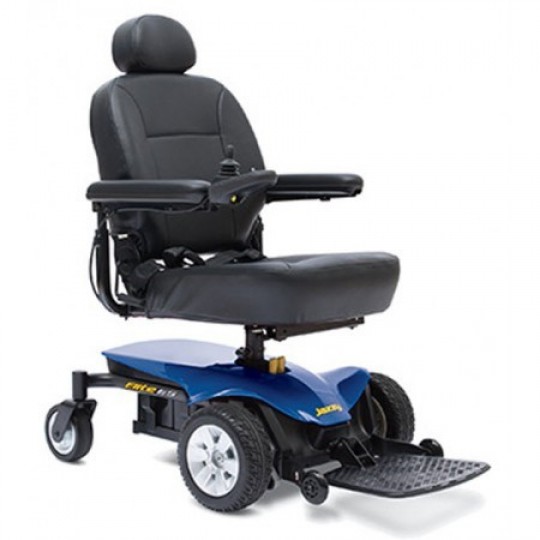

Pride Jazzy Elite ES Portable Power Wheelchair
Key Specs
Weight | Weight Capacity | Turning Radius | Top Speed | Drive Range | Heaviest Piece | Travel Type | Warranty |
---|---|---|---|---|---|---|---|
Weight 147.6 lbs. | Weight Capacity 300 lbs. | Turning Radius 25.5" | Top Speed 4 mph | Drive Range 11 miles | Heaviest Piece 68 lbs. | Travel Type Disassemble | Warranty 5 Year Limited |
Description
The Jazzy® Elite ES Portable delivers a reliable blend of power, performance and portability. In-line, front-wheel drive technology gives the Elite ES Portable excellent stability and maneuverability while simple disassembly makes it easy to take along with you.
Features

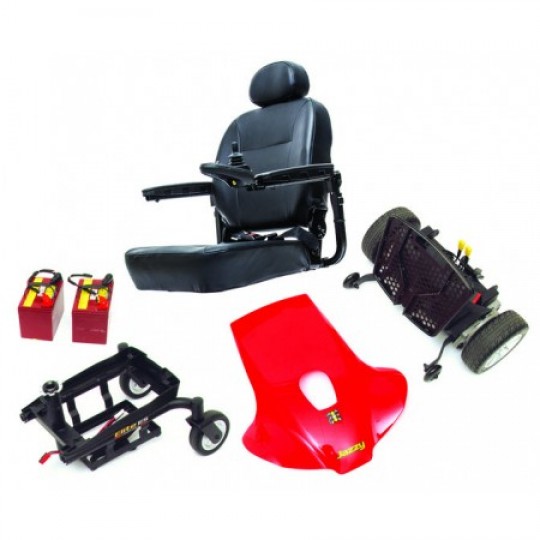

- Easy disassembly for convenient transport
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
Specifications
Model | Jazzy Elite ES Portable |
Weight Capacity | 300 lbs. |
Turning Radius1 | 25.5" |
Width1 | 22.75" |
Length1,2 | 34.75" |
Maximum Speed3 | Up to 4 mph |
Ground Clearance1 | 1.5" |
Front Wheels | 3" solid anti-tips |
Drive Wheels | 9" solid |
Rear Wheels | 6" solid casters |
Drivetrain | Two-motor, in-line, front-wheel drive |
Braking System | Regenerative and electro-mechanical |
Suspension Type | Limited |
High-Back Seat (max. size) | 20"W x 20"D |
High-Back Seat-to-Floor Range | 21.5" - 23.5" |
Specialty Seating (max. size) | 20"W x 20"D (max. dimensions) |
Standard Electronics | 40A, PG GC3 |
Battery Size (2 required) | 12 volt, U-1 |
Standard Battery Charger | 3A, off-board |
Per-Charge Range3,11 | Up to 11 miles |
Battery Weight9 | 24.5 lbs. each |
Weight of Heaviest Piece5 | 47.6 lbs. |
Standard Seat Weight | 43 lbs. (comfort, high-back) |
Standard Seat Size | 18" x 18" |
Medicare Code Coverage | Group 2: Standard, Portable (K0820/K0821) |
Warranty
- 5-year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
