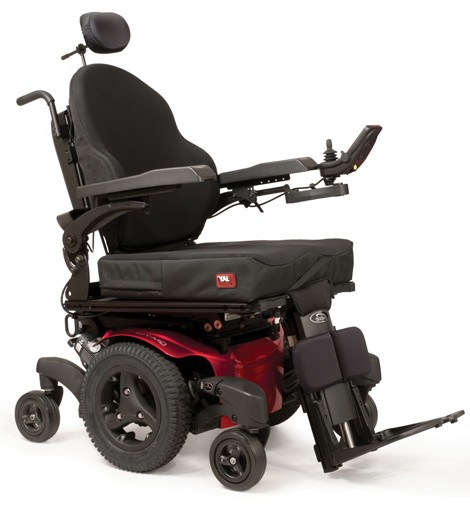

Quickie QM-7 Series Mid-Wheel Power Wheelchair
- Quickie QM-7 Series Single Power Tilt Order Form
- Quickie QM-7 Series Power Recline Seating Order Form
- Quickie QM-7 Series Non-Powered Seating Order Form
- Quickie Power Wheelchairs Product Brochure
- Quickie QM-7 Owners Manual
|Weight||310 lbs - 375 lbs.|
|Weight Capacity||300 lbs. - 400 lbs.|
|Top Speed||5 mph - 8 mph|
|Drive Range||15 miles|
|Warranty||5 Year Limited|
SpiderTrac 2.0 Suspension
Make molehills out of mountains with the QM-7 Series' SpiderTrac 2.0 Suspension. For superior traction and handling, SpiderTrac features independent movement of all six wheels. Optimized articulation of the front and rear wheels give the QM-7 the ability to crawl up and down steep obstacles while keeping you stable and comfortable. The transitions are so smooth, you have to experience it to believe it!
Available with a Black Tire Package and 18 shroud color options, the QM-7 Series power wheelchairs let you sport your unique style!
12" Seat Elevate and Ultra Low Seat Heights
The QM-7 combines a lofty 12" Power Seat Elevate with Quickie's lowest ever seat heights, making everything at home and work within your reach. The QM-7's 12" Power Seat Elevate allows you to interact with peers at eye-level and independently access tall shelves and cabinets. When ordered with tilt, recline, and elevate, the QM-7 can still achieve a seat height as low as 16", so you can pull up to tables and desks even when using a thicker cushion.
New Power Centermount Legrest with 7.5" of Extension
Quickie's NEW Power Centermount Legrest offers an increased 7.5" range of extension. This helps maintain comfortable positioning of the legs during elevation, and keeps the knees from bending when elevated.
With length adjustments that span from 3" to 19", the new Power Centermount Legrest provides the optimal fit for a wide range of user lower leg lengths. The left and right sides may be independently adjusted for a customized fit.
The Power Centermount Legrest has the capability of extending the footplate all the way to the ground, creating a stable platform for easy transfers.
NEW Electronics Options for Enhanced User Experience
PG Drives Advanced Color Joystick - Operating the various functions of a power wheelchair has never been this convenient. This joystick includes a large 3.5" color display for easy viewing, paddle switches that control on/off functions and chair speed, a speaker for increased horn volume, and programmable shortcuts for custom control of other functions.
Retractable Joystick Mount - Adjustable from -135° to +135°, the retractable joystick mount offers a comfortable driving position for users whose hands turn inward/outward, retracts inward for clearing tight spaces, and retracts outward to improve access to desks/tables.
Ctrl+5 Toggles and Buttons - The Ctrl+5 allows for convenient access to 5 seating functions through either toggle switches or buttons, includes a USB port to charge mobile devices, and may be mounted in various locations including behind the back for use as an attendant control.
Switch-It Dual Pro™ - The Dual Pro is a truly proportional head array with fine-tuned adjustments and customization to provide the user an easy-to-learn, precise, and intuitive driving experience.
For information about Seating, Accessories, Customization, Demos, and other options, please feel free to give us a call (Contact Us) to speak with one of our professionally trained staff members. Sherman Oaks Medical can also have an evaluation performed for you by one of our highly experienced Assistive Technology Professionals (ATPs) who can help make sure you get the exact piece of medical equipment that fits your specific needs.
|Starting Retail Price||QM-710: $6,550
QM-715 HD: $7,205
|Drive Wheel Position||Mid Wheel Drive|
|HCPCS Code||QM-710 BC: K0848
QM-710 SC: K0856
QM-710 MPC: K0861
QM-715 HD BC: K0850
QM-715 HD SC: K0858
QM-715 HD MPC: K0862
QM-720 BD: K0868
QM-720 SD: K0877
QM-720 MPD: K0884
|User Weight Capacity||QM-710/QM-720: 300 lbs.
QM-715 HD BC and SC: 400 lbs.
QM-715 HD MPC: 350 lbs.
|Overall Wheelchair Weight||No Power Seating Option: 310 lbs.
Single Power Seating Option (Tilt or Recline): 350 lbs.
Multiple Power Seating Options (Tilt & Recline): 375 lbs.
|Overall Wheelchair Width||25"|
|Overall Wheelchair Length||36" without footrests|
|Shipping Dimensions||47" L x 40" W x 54" H|
|Average Shipping Weight||350 lbs.|
|FRAME AND FEATURE MEASUREMENTS|
|Seat Width Range||12" - 22"
Up to 24" seat widths available on select QM-715 HD models
|Seat Depth Range||12" - 22"|
|Seat-To-Floor Height||No Power Seating Option: 16.3" - 21"
Single Power Seating Option (Tilt or Recline): 16.1" - 19.6"
Multiple Power Seating Options (Tilt & Recline): 16.0" - 18.5"
|Pre-Set Seat Frame Angle||0°, 3°, 6°|
|Back Height Range||14" - 28"|
|OPTIONS AND ACCESSORIES|
|Maximum Speed||5.0 mph High Torque Package
6.0 mph Standard Package
8.0 mph Community Package
|Frame/Shroud Color Options||Candy Apple Red
High Gloss Black
Carbon Fiber Print
|Drive Wheel||14" Cast Wheel Solid Inserts (knobby) - Black or Grey option
14" Cast Wheel Pneumatics (knobby)
|Caster Wheels||Front and Rear: 6" Solid - Black or Grey option|
|Transit Option||4-point Transit Package|
|LED Light Package||N/A|
|Wheel Locks||Wheel Locks|
|Manual Conversion Kit||N/A|
|Ventilator Options||Fixed Vent Tray (Pulmonetic LTV Models)|
|Batteries||22NF Flat Top with straps
Group 24 Flat Top Gel Cell with straps
Group 34 Flat Top Gel Cell with straps
|Battery Charger||8A Dual Mode (Compact) CTE
Active Controls ReCharge with Socket
WARNING: Battery chargers are only intended to charge 24V; Group 22, Group 24, and Group 34; Lead Acid or Gel style batteries.
|Drive Control Options||Non-expandable R-net PM120 Controller (120 Amp)
Expandable R-net PM120 Controller (120 Amp)
|Joysticks||R-net Standard LED Joystick
R-net Joystick with Stereo Jacks and Color Display
R-net Joystick with Toggle, Speed Potentiometer, Stereo Jacks and Color Display
R-net Advanced Joystick with 3.5" Color Display, Paddle Switches, Shortcut Keys, and Stereo Jack
|R-net OMNI and Output Options||R-net Input Control Module and Display with Built-in Infrared and Armrest Mount
R-net Output Module (ECM)
R-net Bluetooth Mouse-over
|OMNI Mount||Swing-Away (right or left side)|
|Switch Inputs for Joysticks or OMNI||Stereo to 2 Mono Splitter
Egg - Black
Dual Toggle Switch Only
Switch-It Mini 1 Button on Mono Plug
Switch-It Mini 2 Button on Mono Plugs
Switch-It Mini 2 Button on 1 Stereo Plug
Switch-It Mini 4 Button on DB9 Connector
|Switch Mount Bracket||Single|
|Specialty Driver Control Options||Switch-It Dual Pro Proportional Head Control (Adult or Pediatric)
Switch-It Versa-Guide Compact Joystick Midline w/ Gatlin Package and Optional Proximity Flex Switches
Switch-It Micro-Pilot Joystick w/ Bullet Tray Package
Switch-It Micro-Guide Joystick w/ Bullet Tray Package
ASL Proportional Micro Extremity Joystick Midline w/ Gatlin Package
ASL Mushroom Joystick Midline w/ Gatling Package
ASL Compact Joystick w/ Integrated Buttons Midline w/ Gatlin Package
ASL Micro Mini Joystick with Hand Pad Midline w/ Gatlin Package
Switch-It Versa-Guide Chin Control and Egg Switch Package or Proximity Flex Switches Package
Switch-It Versa-Guide Bib Chin Control and Proximity Flex Switches Package (6" or 8")
Switch-It Micro-Pilot Bib Chin Control Package (6" or 8")
Switch-It Micro-Guide Bib Chin Control Package (6" or 8")
ASL Proportional Micro Extremity Joystick Chin/Lip Control Package
Switch-It Head Array Package 3-Switch Curved (Long or Stubby)
Switch-It Head Array 5-Switch Flat (Adult and Pediatric)
ASL Proximity Head Array Package 3-Switch (Adult or Pediatric)
Quickie Sip 'N' Puff System
Switch-It 3, 4, or 5 Naked Proximity Switches on DB9 Connector
ASL 5-Switch Adaptor Box on DB9 Connector
4-Way Toggle Switch Button on DB9 Connector
|Electronics Programmers||R-net PC Programmer with Dongle|
|Seat Frame||ASAP II
3.7 Power Recline Seat
|Powered Seating Options||Quickie SPOT 50° CG Tilt
3.7 Power Recline with Power Shear Reduction
9" Power Seat Elevate
12" Power Seat Elevate
|Powered Seating Control Method||Switch Control 1 Actuator with Dual Toggle
Switch Control 1 Actuator with Buddy Button and Mount
Switch Control 1 Actuator with Switch-It Mini 1 Button
Switch Control 1 Actuator with Switch-It Mini 2 Button
Switch Control 2-3 Actuators with Dual Toggle
Switch Control 2-3 Actuators with 4-Way Toggle
Switch Control 2-3 Actuators with Switch-It Mini 2 Button
Switch Control 2-3 Actuators with Switch-It Mini 4 Button
Thru Drive 1 Actuator
Thru Drive 1 Actuator with Assignable Buttons
Thru Drive 2+ Actuators
Thru Drive 2+ Actuators with Assignable Buttons
Ctrl+5 Push Buttons
|Backrest Frame Type||Angle Adjustable (ASAP II)
Manual Recline 40°
3.7 Power Recline
|Angle Adjustable Backrest Options||Non-folding
|Back Cane Angle||Straight
|Towel Bar Depth||Shallow
Deep (extends 4" from back canes)
|Back Cane Height||ASAP II:
Fixed Low (15.5")
Fixed Medium (17.5")
Fixed Tall (19.5")
3.7 Power Recline:
22" to 28"
Tension Adjustable Upholstery Ballistic Nylon
Tension Adjustable Upholstery 3DX Vented
JAY SPO Posterior Positioning
ART SPO Posterior Positioning
Integrated JAY J3 (full line available)
|Head Support Options||Headrest Mounts:
Whitmyer Cobra Xtra
|Lateral Thoracic Support||Swing-Away 4" x 4"
Swing-Away 4" x 5"
Swing-Away 4" x 6"
Swing-Away 6" x 4"
Swing-Away 6" x 5"
Swing-Away 6" x 6"
|Thigh Support||SPOT Long Thigh Support with Removable Mount (right or left)|
|Knee Adductor Supports||Swing-Away Short or Long Arm Mounts (right or left)
Small or Large Pad Sizes
|Chest Strap||Padded Chest Strap|
|Armrests||Dual Post Flip Back
Dual Post Flip Back Height Adjustable
Cantilever with Locking Post
Single Post Height Adjustable
Reclining Cantilever with Locking Post
|Arm Pads||Desk Length Waterfall
Full Length Waterfall
Desk Length Standard
Full Length Standard
Standard Reclining Arm Pad
Full Length Cantilever
Desk Length Cantilever
Comfort Reclining Arm Pad - Foam (2" or 4")
Comfort Reclining Arm Pad - Gel (2" or 4")
Otto Bock Reclining Arm Pad
Otto Bock Hand Pad
Manual ELR Swing-Away
Power Centermount ELR with 7.5" of Extension
Swing-Away Power ELR with Articulation
Angle Adjustable Centermount
|Footplates||Composite with Heel Loop
Adult Angle Adjustable with Heel Loop
Kids Angle Adjustable with Leg Strap
One-Piece Angle Adjustable
Angle Adjustable Centermount
|Tray Tables||Small Tuffak 13-14
Medium Tuffak 15-17
Large Tuffak 18
|Positioning Belts||Auto Style Buckle
2" Aircraft Buckle
2" Aircraft Padded Buckle
|Miscellaneous||Active Controls Power Buddy
RAM Phone Mount on Round JS Tube
RAM Tablet Mount on Round JS Tube
RAM Cup Holder
Switch-It Remote Stop Switch
