SB2 TubBuddy Transfer System with Tilt
|Weight||Weight Capacity||Seat Width||Seat Depth|
|81 lbs.||350 lbs.||17.7"||16.5"|
The TubBuddy with Tilt SB2T transfer system will turn your existing bath tub into an accessible bathroom that allows you to enjoy showering again without the excessive cost, delay and stress of a full bathroom remodel.

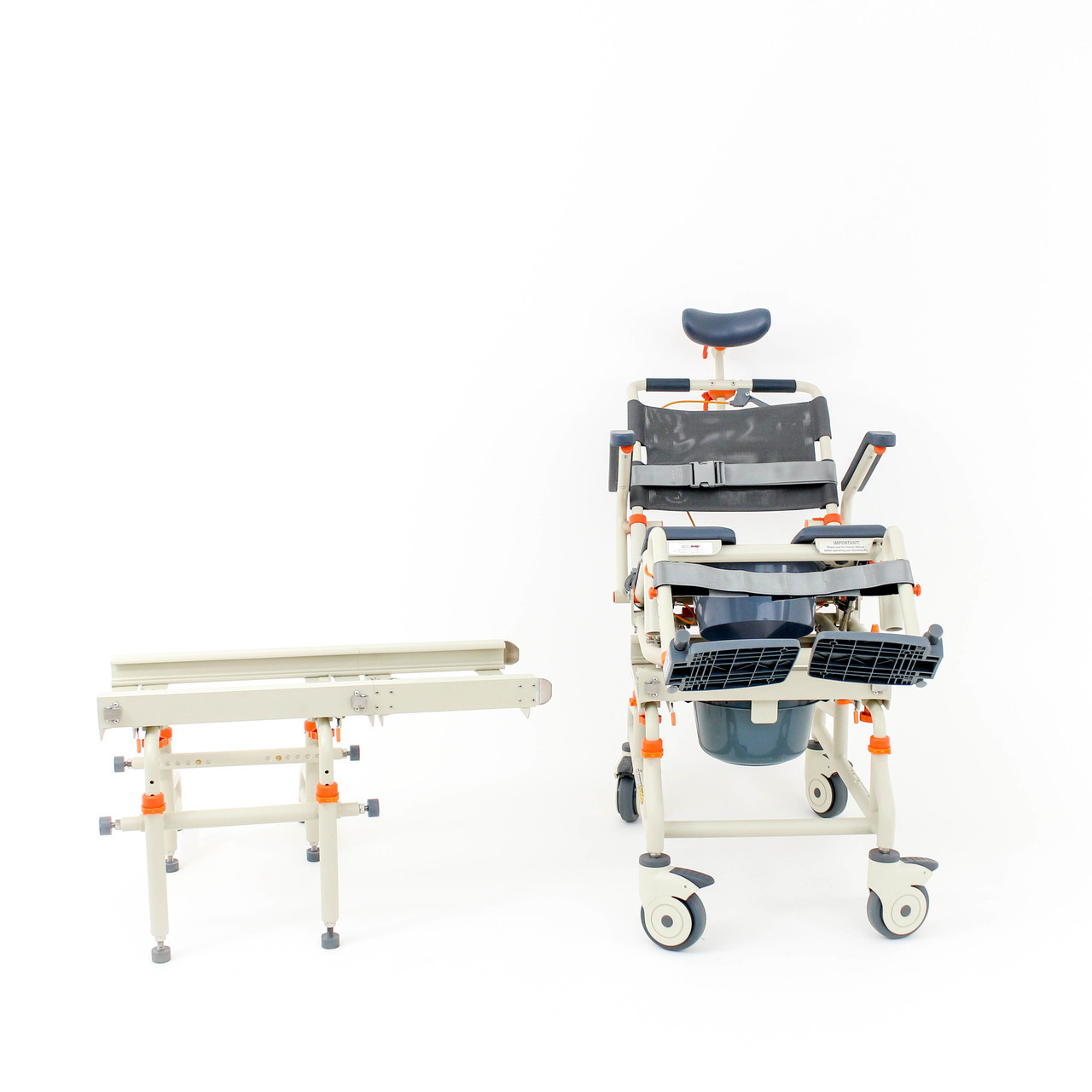

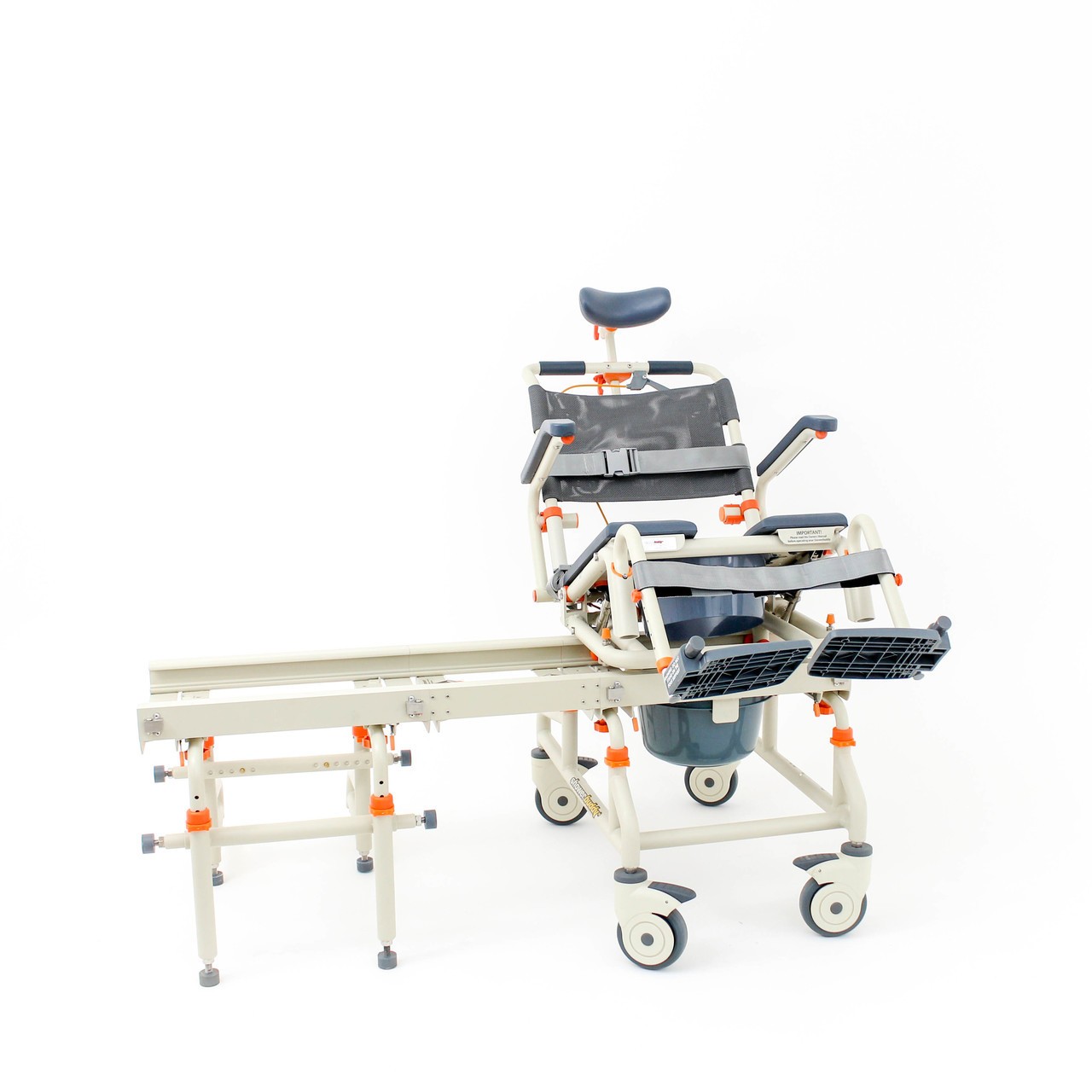

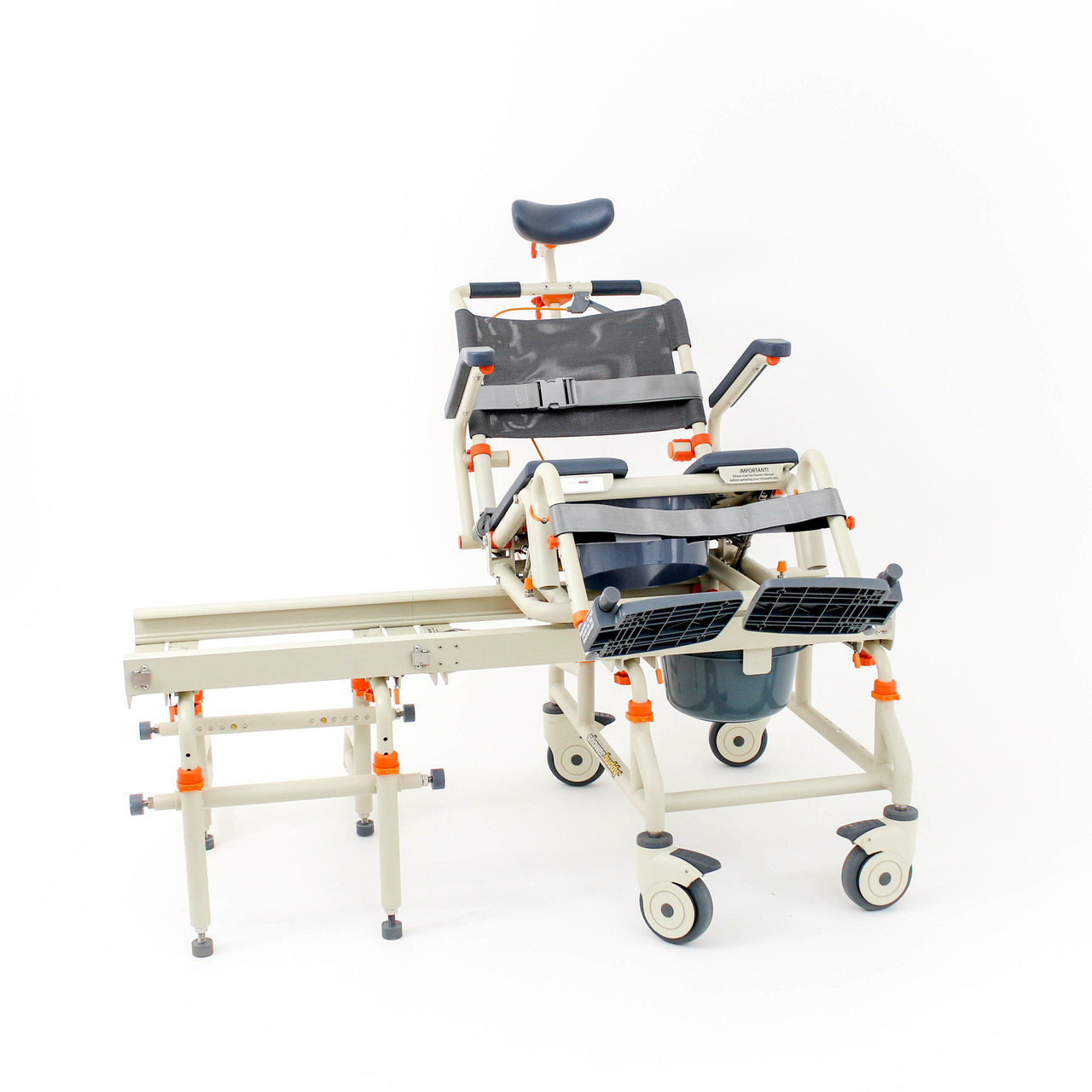

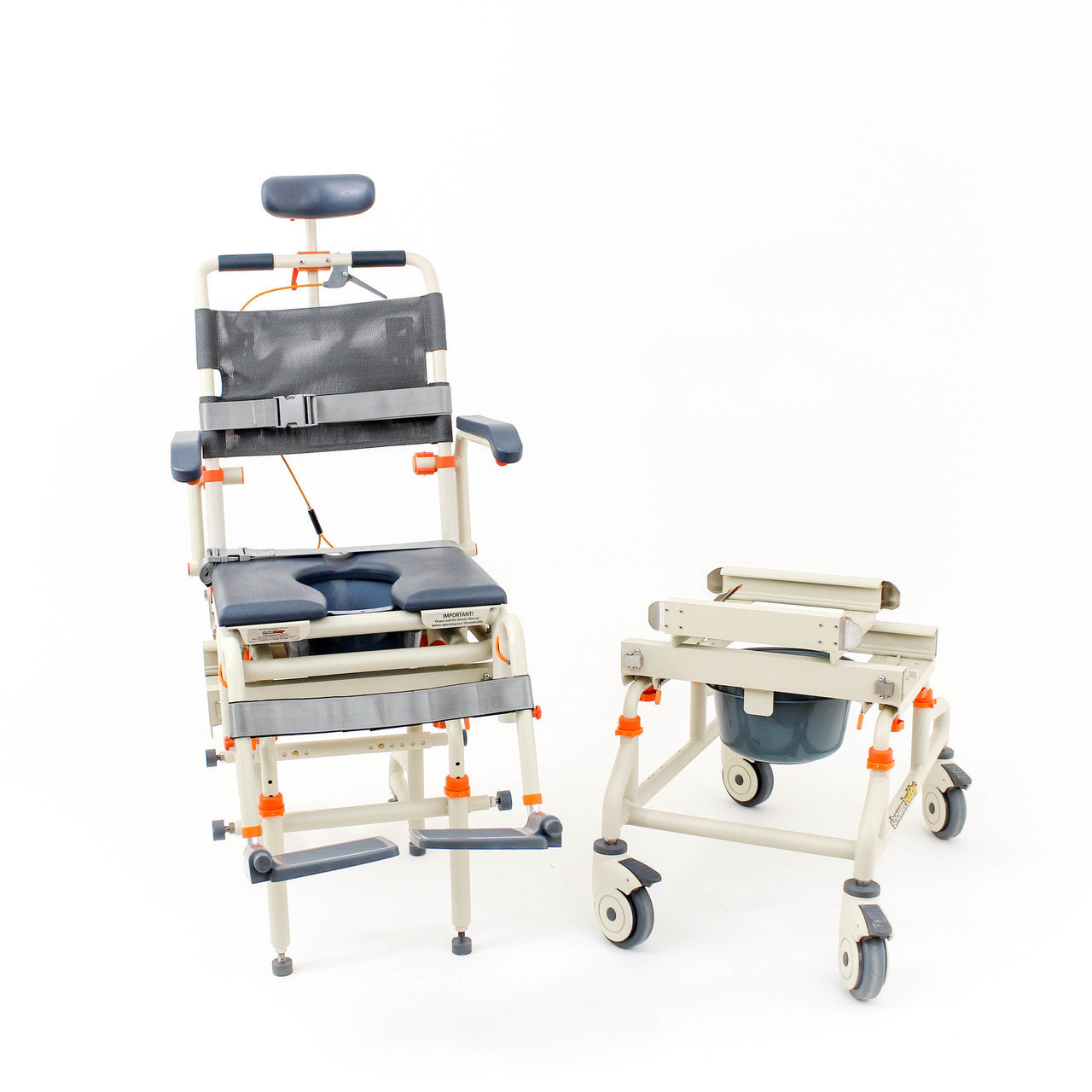

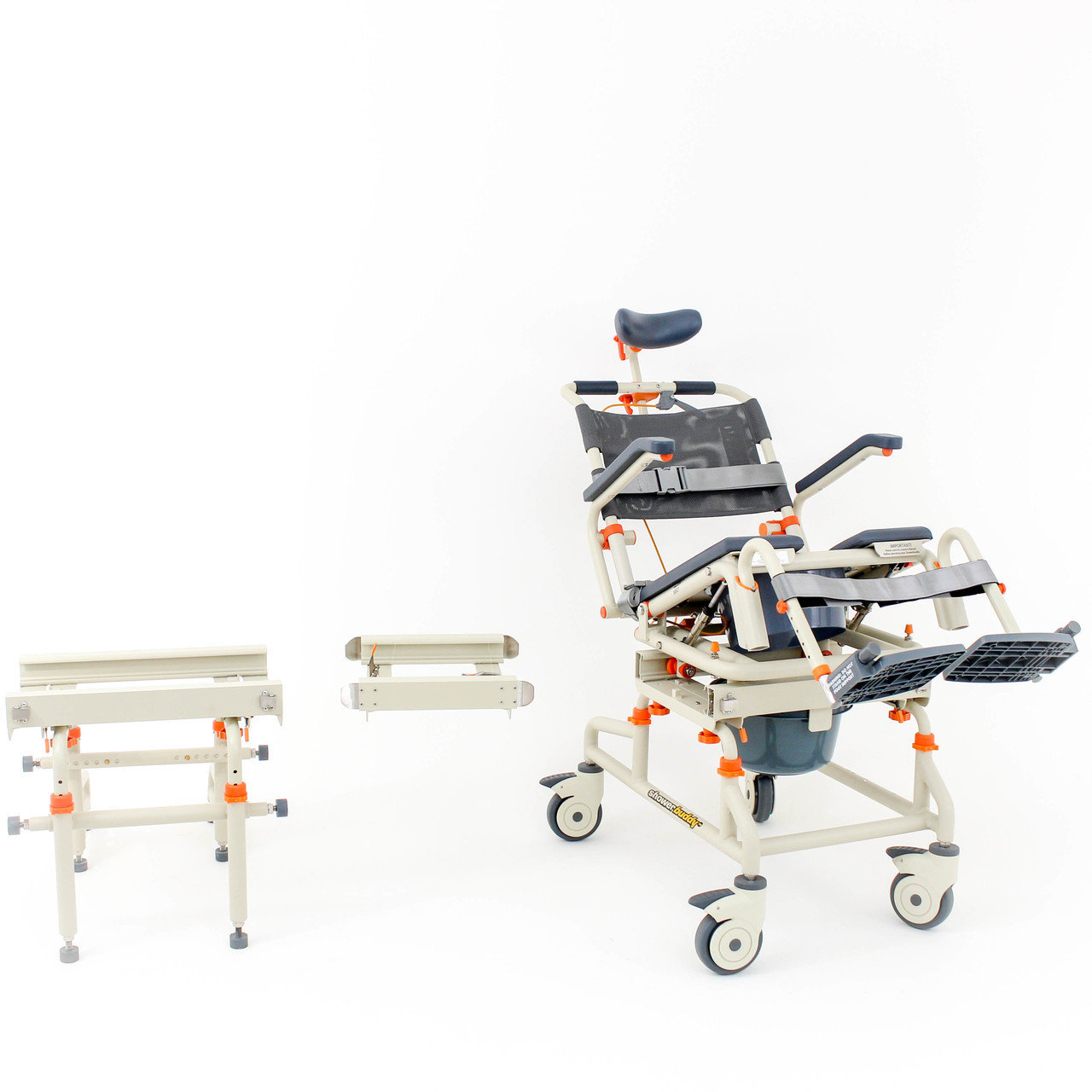

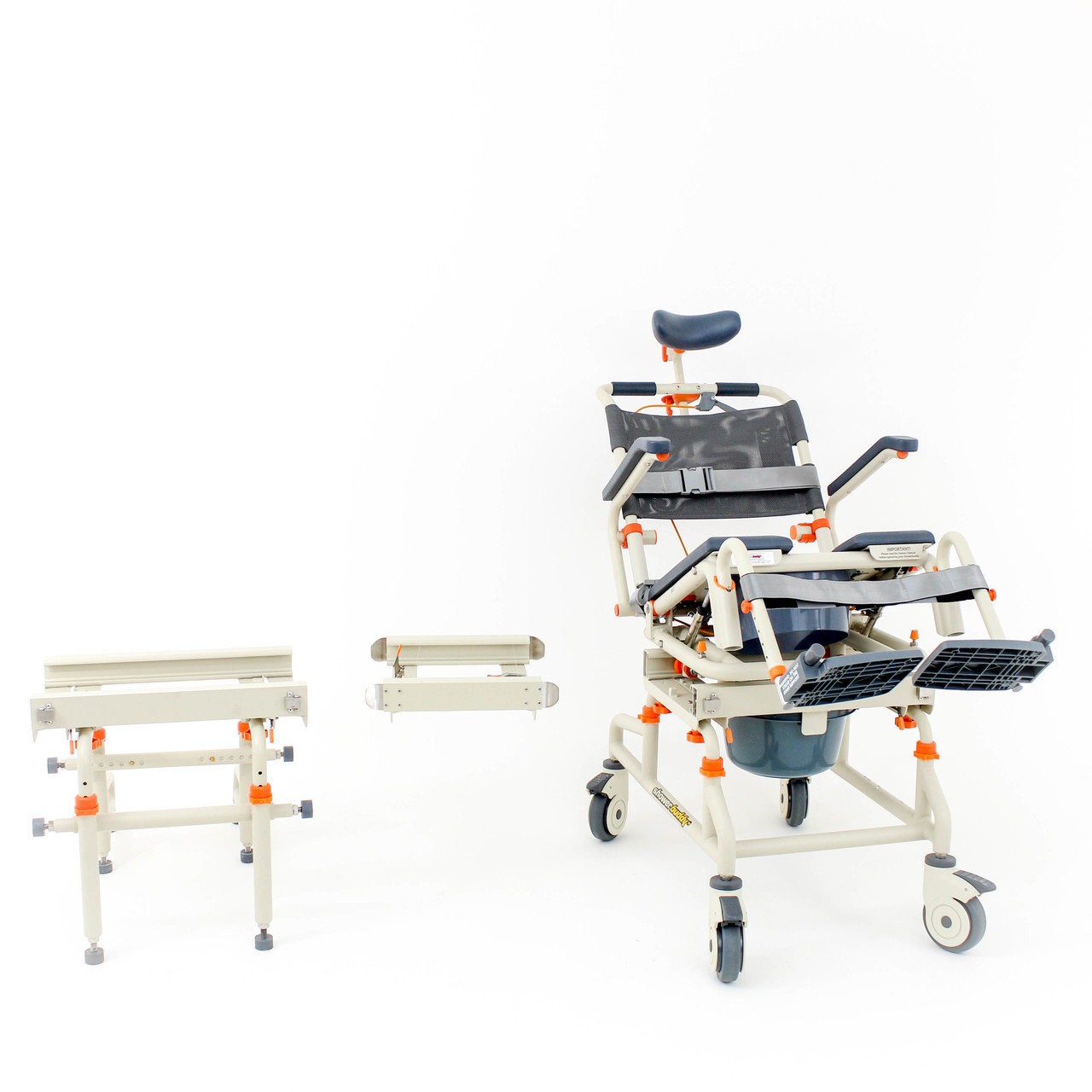

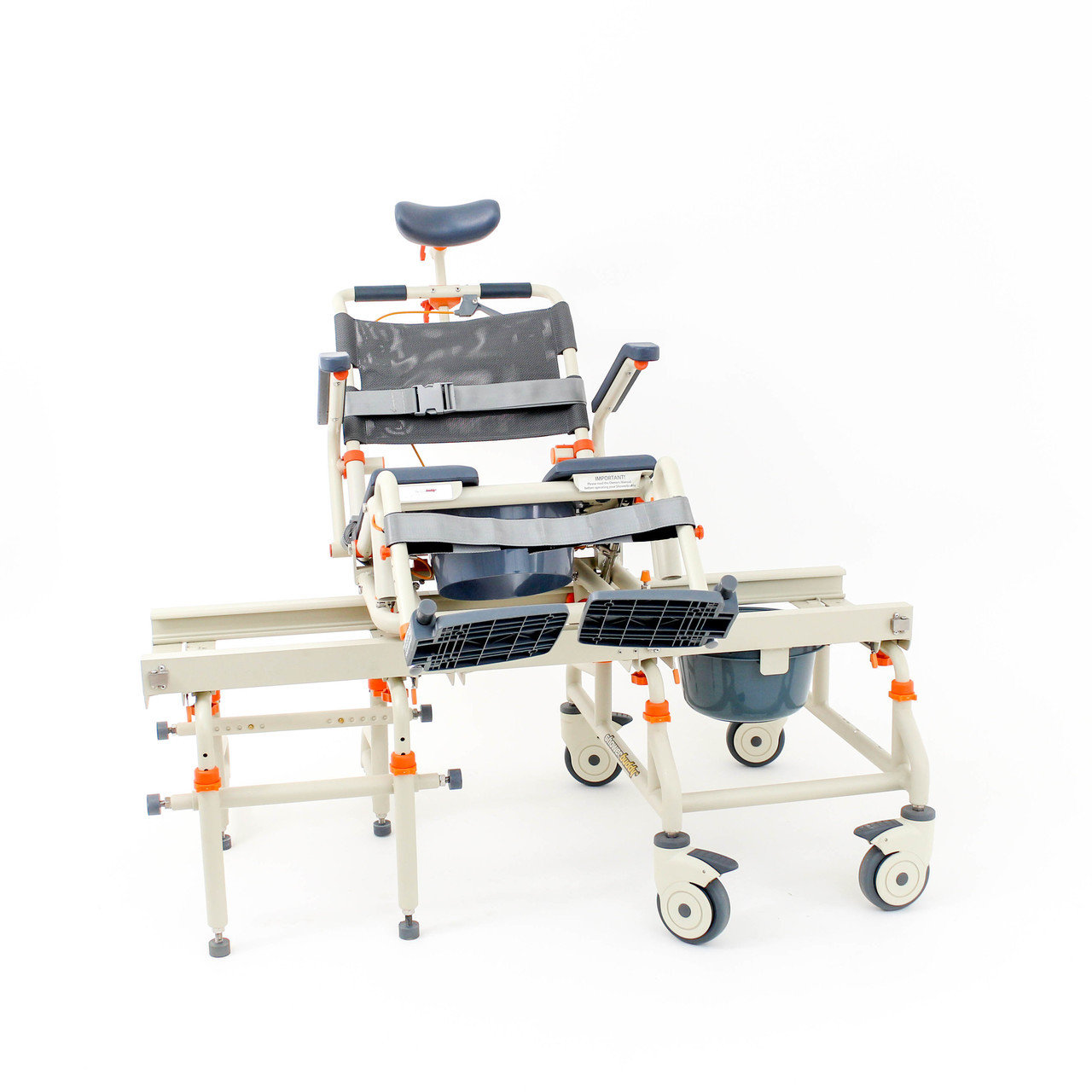

The TubBuddy with Tilt SB2T alleviates heavy lifting and multiple transfers for toiling and showering. This chair is separated into three sections; rolling base (shower chair), bridge and tub base. The rolling base rolls around the house like a wheelchair allowing patient to easily transfer and then roll right over most toilets. Once completed with toiling the rolling base connects to a bridge and then onto the tub base allowing the chair to slide in a tilt position over the tub. Once over the tub the bridge disconnects allowing the curtain to close .

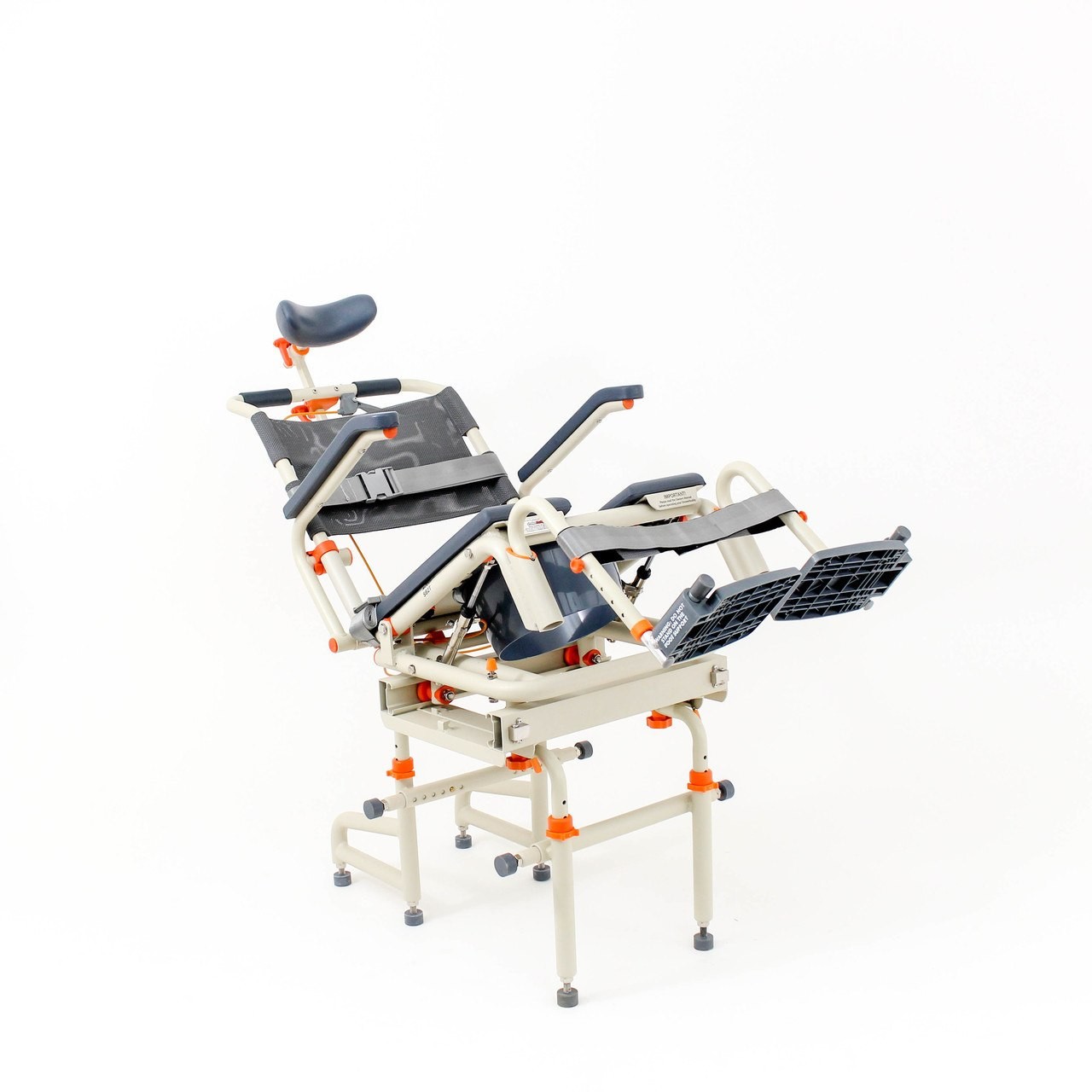

- The TubBuddy with Tilt SB2T allows the chair to tilt while transferring over the tub preventing the caregiver lifting the patients legs over the tub.
- The system is made of aluminum which will not rust when in contact with water.
- Height adjustability on rolling base and tub base- allowing for use in a variety of tubs.
- Rolls over some toilets- allowing for “no mess” alternative to commode usage.
- Custom bridge sizes are available- allowing for use in a variety of bathroom sizes.
|PRODUCT SPECS||WEIGHTS & DIMENSIONS|
|Weight Limit||350 lbs (160kg)|
|Rolling Base (w x D)||19.3” x 33” (490mm x 840mm)|
|Rolling Base w/ Footrests (W x D)||19.3” x 43.3” (490mm x 1100mm)|
|Outer Armrest Width||22.5” (570mm)|
|Inner Armrest Width||18.7” (475mm)|
|Width Inside Main Legs||400mm (15.7”)|
|Backrest Width||18" (460mm)|
|Back Rest Height from Cushion||17” (440mm)|
|Toilet Height Clearance (maximum)||19.4” (495mm)|
|Standard Bridge Length (Can Be Customized)||11.8” (300mm)|
|Seat Cushion WxD||17.7” x 16.5” (450 x 420mm)|
|Seat Cushion Height from Floor||24.8” – 28.8” (630mm - 730mm)|
|Seat Cushion Opening W x D||6.8” x 13” (175mm x 335mm)|
|Tub Base (at top) W x D||19" x 13” (480mm x 330mm)|
|Tub Base (at bottom of legs) W x D||(335 x 735mm) 13.2” x 29"|
|Tub Base (side stabilizers)||16.7” – 28.3” (425mm – 720mm)|
|Tilt Angle||0 – 30 Degrees, Infinite Positioning|
|Armrests||Removable / Lockable / Flip-back|
|Frame Material||Corrosion resistant Aluminum frame (Grade 6061 T6)|
|Misc. Parts||Stainless steel parts and hardware (Grade 304)|
|Safety Belts||Lap & Chest Belts|
|Caster Wheels||5” (125mm) , Lockable|
|Commode||Removable Commode system|
- 2 Year Limited Warranty
